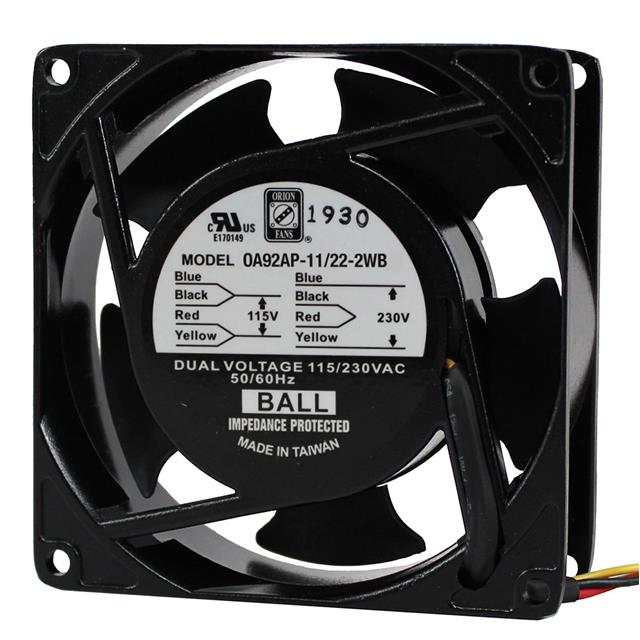

OA92AP-11/22-2WB
ActiveORION FANS
AXIAL FAN, AC, OA92AP-DUALV SERIES, BALL BEARING, SQUARE, 27CFM, 22DB, 230V, 10W, 2300RPM
OA92AP-11/22-2WB
ActiveORION FANS
AXIAL FAN, AC, OA92AP-DUALV SERIES, BALL BEARING, SQUARE, 27CFM, 22DB, 230V, 10W, 2300RPM
Description
General part information
OA92AP-11/22-2WB
Fan Tubeaxial 115 ~ 230VAC Square - 92mm L x 92mm H Ball 27.0 CFM (0.756m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | OA92AP-11/22-2WB |
|---|---|
| Air Flow | 27 CFM |
| Approval Agency | cURus, UR, CE, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage |
| Lifetime | 80000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Aluminum |
| Noise | 22 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | -4 °F |
| Power (Watts) | 10 W |
| RPM | 2300 RPM |
| Size / Dimension Height | 92 mm |
| Size / Dimension Length | 92 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.14 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated (Max) | 230 V |
| Voltage - Rated (Min) | 115 VAC |
| Voltage Range (Max) | 240 V |
| Voltage Range (Min) | 100 VAC |
| Width | 26 mm |
