Description
General part information
7043150

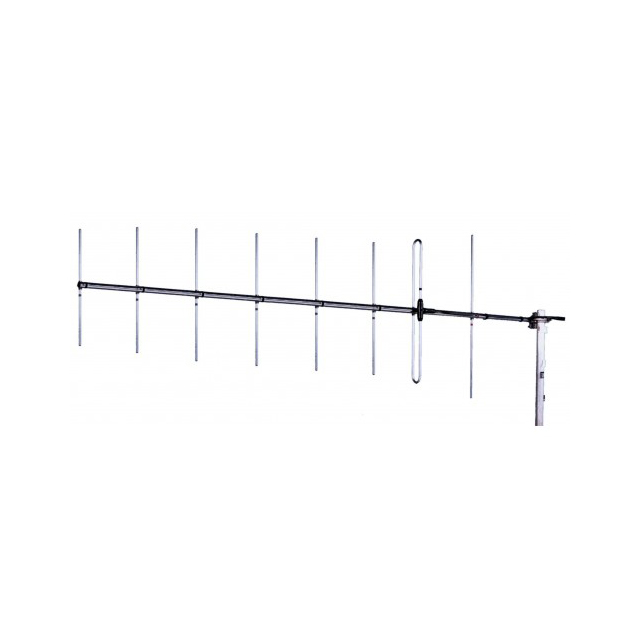

RF ANTENNA Yagi, 8-Element N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 7043150 |
|---|---|
| Antenna Element Count | 8 elements |
| Antenna Type | Yagi |
| Features | Cable, 3m |
| Frequency (Center/Band) | 155 MHz |
| Frequency Group | VHF |
| Frequency Group Maximum (VHF) | 300 MHz |
| Frequency Range (Max) | 165 MHz |
| Frequency Range (Min) | 145 MHz |
| Gain | 10 dBd |
| Height (Max) | 134.252 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 150 W |
| Termination | N Type Female |
| VSWR | 1.5 |
