Specification	ADT7481ARMZ-1RL

Accuracy - Highest	1 °C
Accuracy - Lowest	2.5 °C
Features	Standby Mode, Output Switch, One-Shot, Programmable Limit
Mounting Type	Surface Mount
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Output Type	SMBus
Package Length	0.118 in

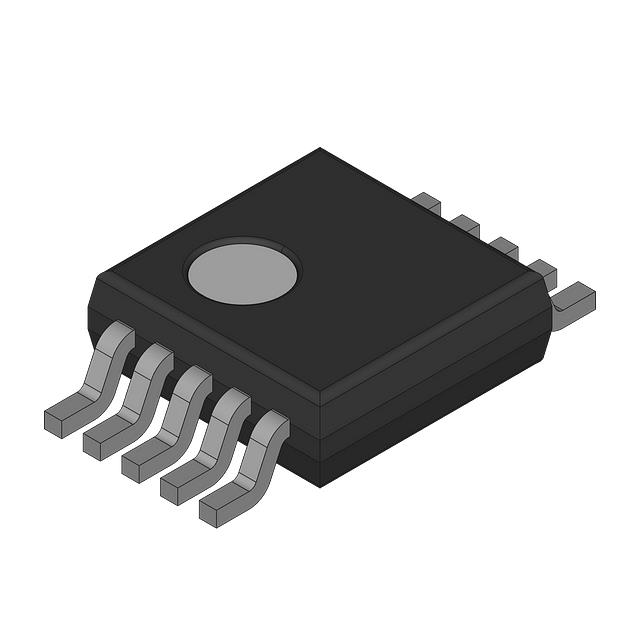

Package Name	10-TFSOP, 10-MSOP
Package Width	3 mm
Sensing Temperature - Local (Max)	127 °C
Sensing Temperature - Local (Min)	0 °C
Sensing Temperature - Remote (Max)	191 °C
Sensing Temperature - Remote (Min)	-64 °C
Sensor Type	Digital, Local/Remote
Test Condition (Alternate) Maximum	100 °C
Test Condition (Alternate) Minimum	-40 °C
Test Condition (Primary) Maximum	70 °C
Test Condition (Primary) Minimum	0 °C
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	3 V
