LPJ-45SP
ActiveEaton - Electronics Division

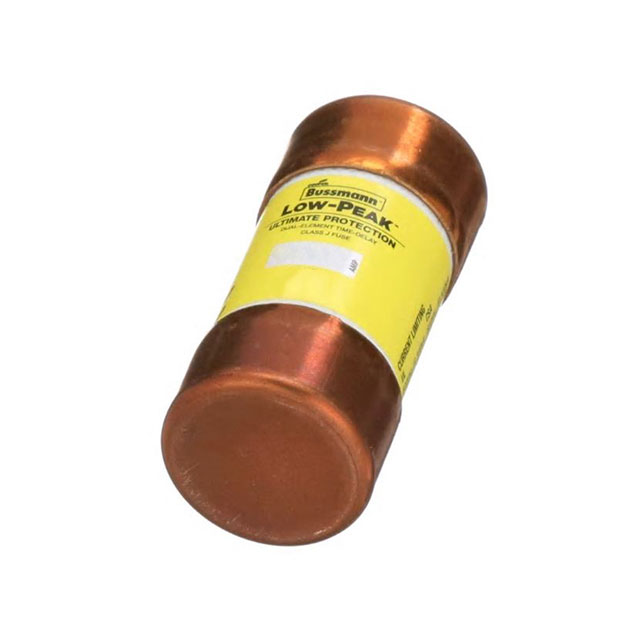

FUSE, INDUSTRIAL / POWER, LOW-PEAK LPJ SERIES, 45 A, 600 VAC, 300 VDC, 1-1/16" X 2-3/8"
LPJ-45SP
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, LOW-PEAK LPJ SERIES, 45 A, 600 VAC, 300 VDC, 1-1/16" X 2-3/8"
Description
General part information
LPJ-45SP
45A 600 VAC 300 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | LPJ-45SP |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 300 kA |
| Breaking Capacity (DC) | 100 kA |
| Class | J |
| Current Rating | 45 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 1.06 in |
| Size / Dimension Length | 2.38 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 300 V |
