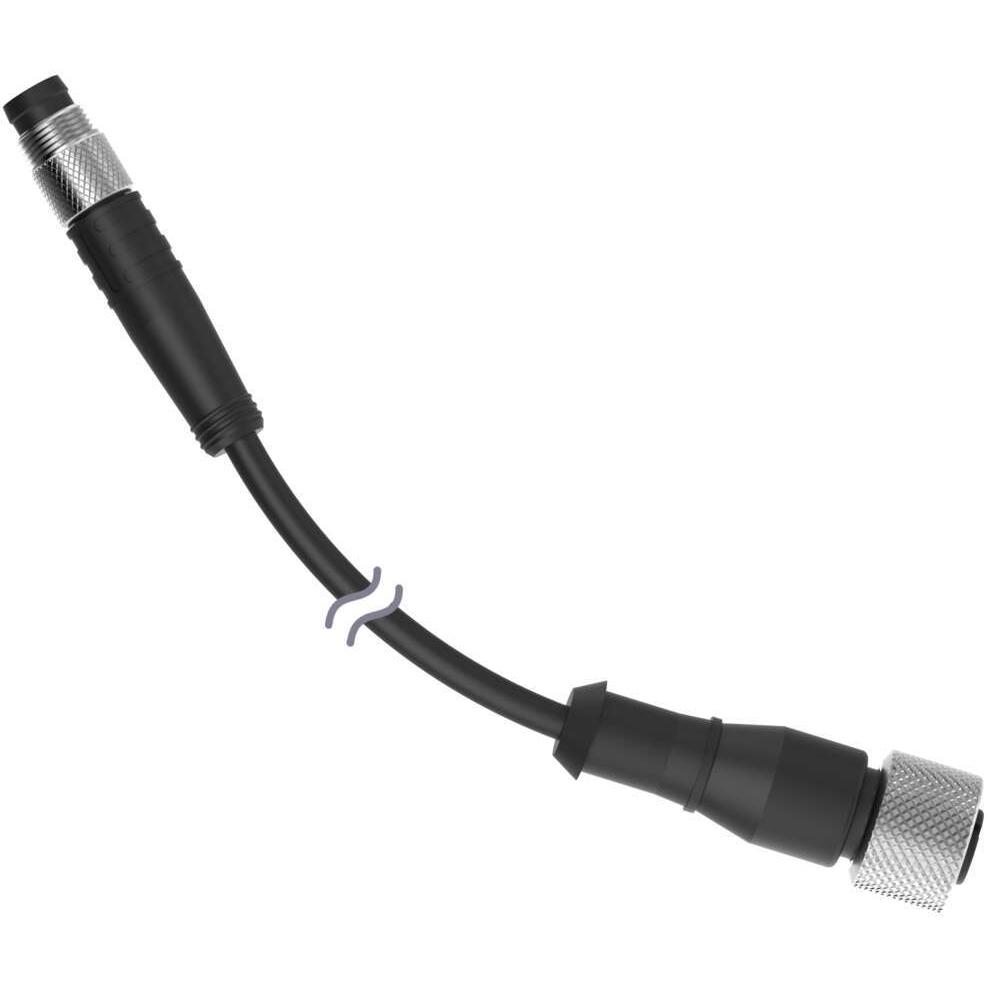

BC-M12F4-M8M4-24-2
ActiveBANNER ENGINEERING
CORDSET: DOUBLE ENDED A-CODE M12
BC-M12F4-M8M4-24-2
ActiveBANNER ENGINEERING
CORDSET: DOUBLE ENDED A-CODE M12
Description
General part information
BC-M12F4-M8M4-24-2
CORDSET: DOUBLE ENDED A-CODE M12
Technical Specifications
Parameters and characteristics for this part
| Specification | BC-M12F4-M8M4-24-2 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Gender | Male Pins |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert (Code) | M8 |
| 2nd Connector Type | Receptacle |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Length | 6.56 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
