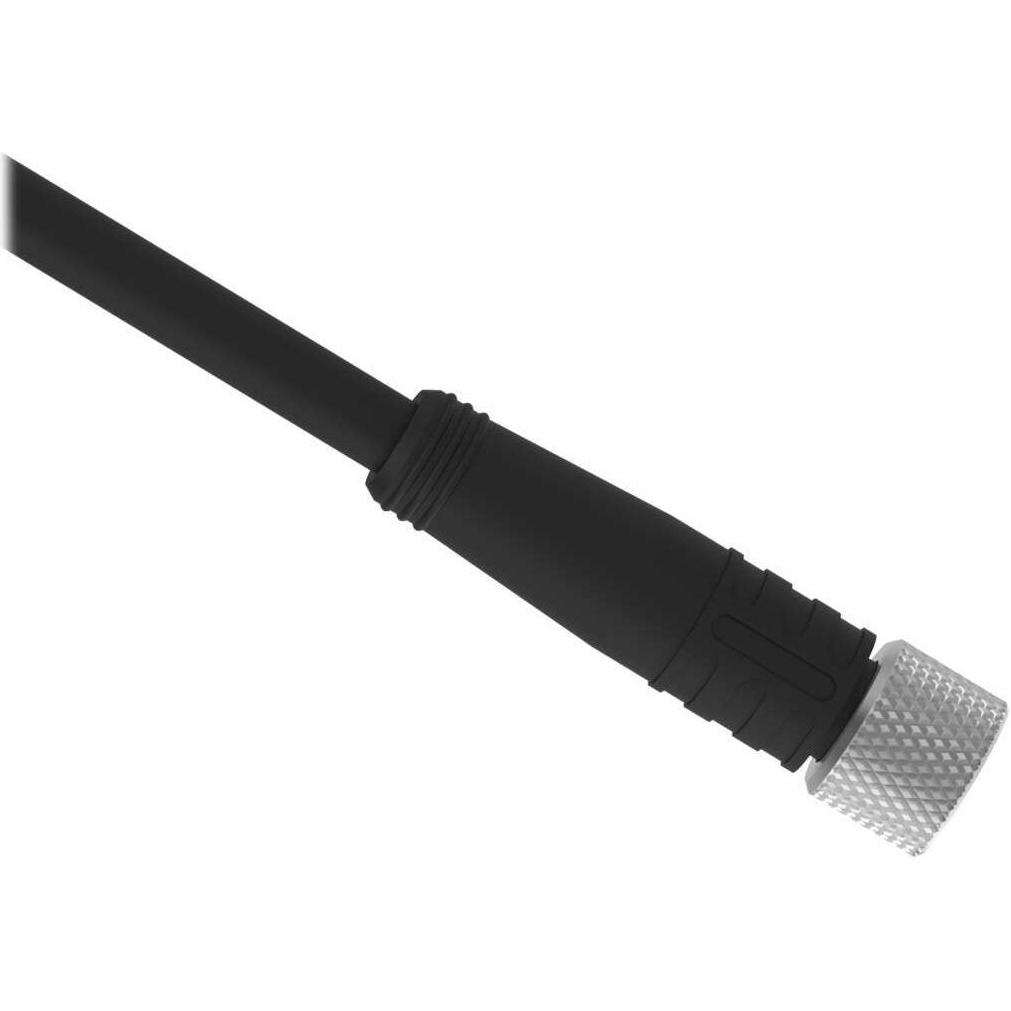

BC-M8F3-24-20
ActiveBANNER ENGINEERING
CORDSET: SINGLE ENDED M8 THREADE
BC-M8F3-24-20
ActiveBANNER ENGINEERING
CORDSET: SINGLE ENDED M8 THREADE
Description
General part information
BC-M8F3-24-20
CORDSET: SINGLE ENDED M8 THREADE
Technical Specifications
Parameters and characteristics for this part
| Specification | BC-M8F3-24-20 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 65.6 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
