MAL203859221E3
ObsoleteVishay Dale
CAP ALUM 220UF 20% 100V RADIAL
MAL203859221E3
ObsoleteVishay Dale
CAP ALUM 220UF 20% 100V RADIAL
Description
General part information
MAL203859221E3
220 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 3500 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL203859221E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| Height - Seated (Max) | 1.063 in |
| Lead Spacing | 0.197 in |
| Lifetime | 3500 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |

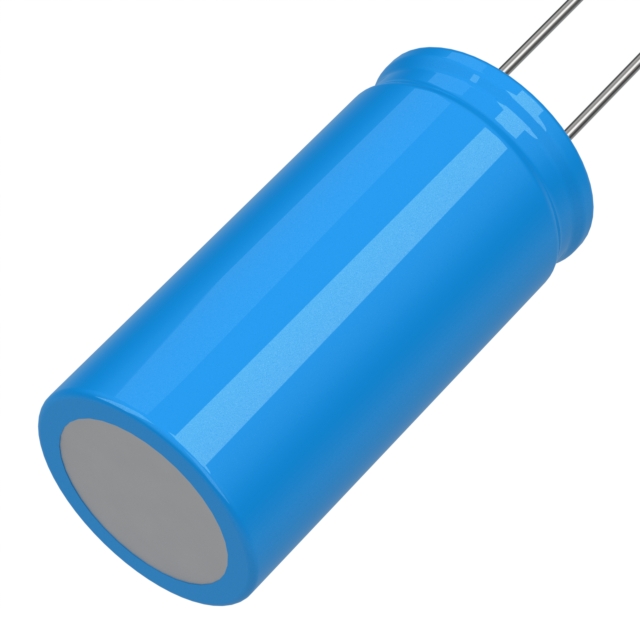

| Package / Case | Can, Radial |
| Ripple Current | 911.2 mA |
| Size / Dimension Diameter | 0.512 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
