9PX3K3UNP2
ActiveEaton Tripp Lite

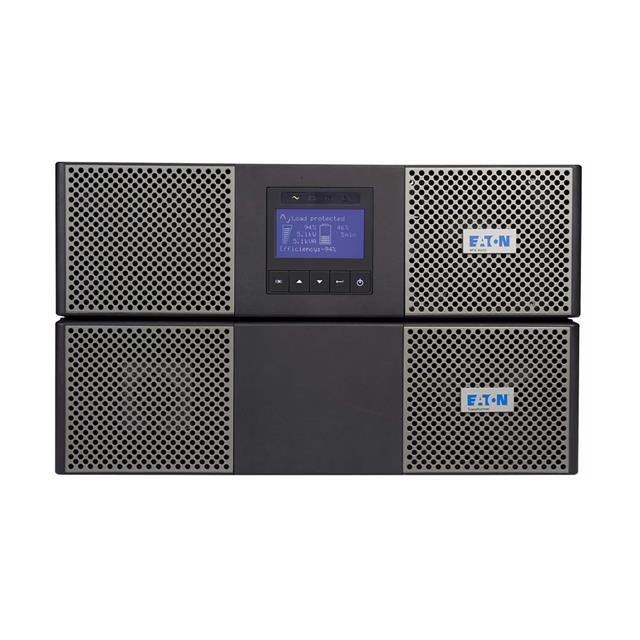

EATON 9PX 3000VA 3000W 208V ONLI
9PX3K3UNP2
ActiveEaton Tripp Lite
EATON 9PX 3000VA 3000W 208V ONLI
Description
General part information
9PX3K3UNP2
EATON 9PX 3000VA 3000W 208V ONLI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9PX3K3UNP2 |
|---|---|
| Applications | General Purpose, Industrial Control |
| Approval Agency | cUL |
| Backup Time - Max Load | 3 minutes |
| Form | Rackmount, Tower |
| Height | 10.2 in |
| Input Connector | Hardwired |
| Media Lines Protected | RS-232 |
| Output Connector | Hardwired |
| Power - Rated (VA) | 3 kVA |
| Power - Rated (W) | 3 kW |
| Size / Dimension Length | 27 in |
| Size / Dimension Width | 17.3 in |
| Type | Online (Double Conversion) |
| Voltage - Input | 240 VAC, 230 V, 220 VDC, 200 VAC, 208 VAC |
| Voltage - Output (1) | 120 VAC |
| Voltage - Output (2) | 200 V |
| Voltage - Output (3) | 208 V |
| Voltage - Output (4) | 220 V |
| Voltage - Output (5) | 230 V |
| Voltage - Output (6) | 240 V |
