2389268-5
ActiveTE Connectivity AMP Connectors

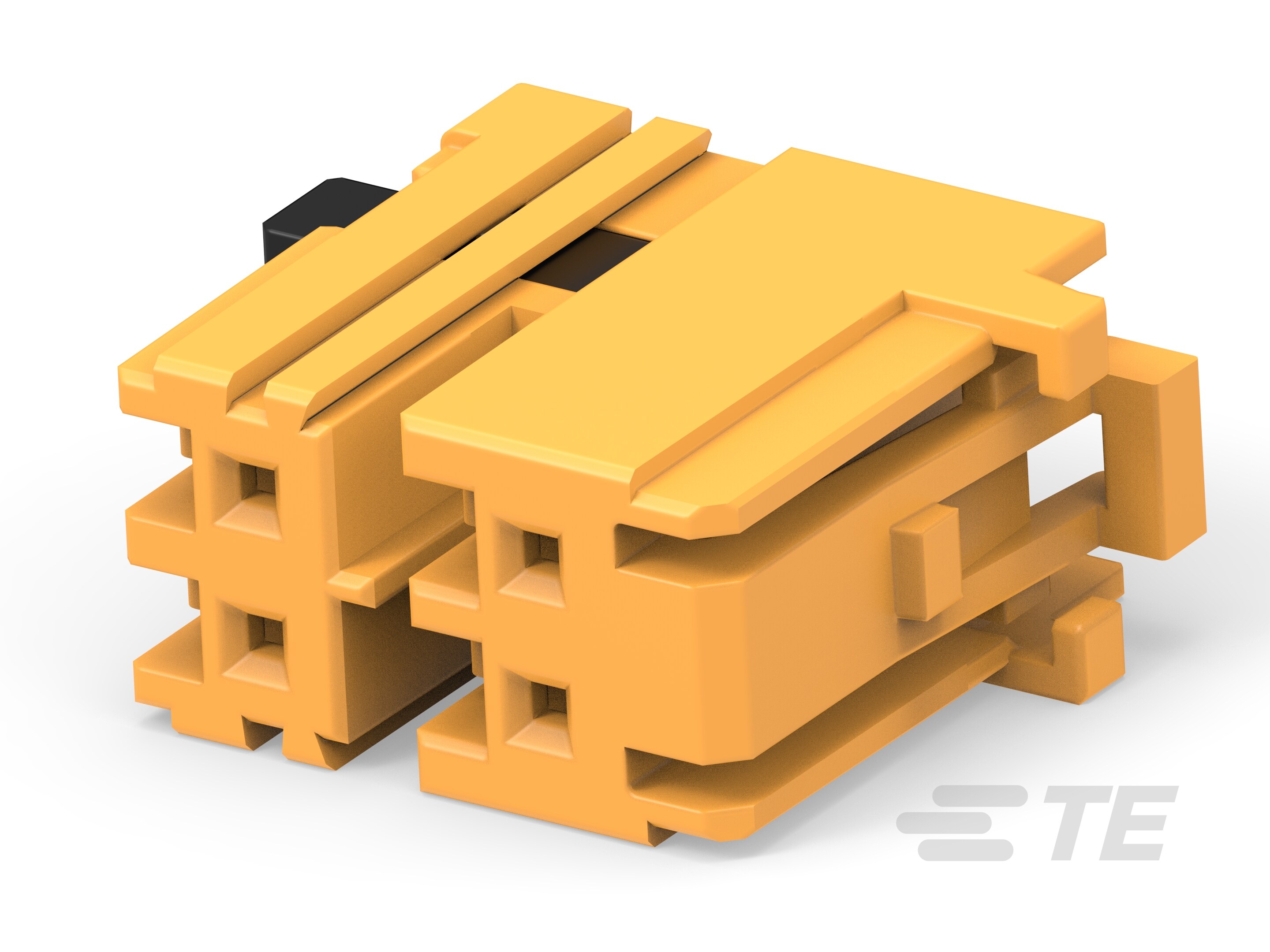

GI3.0MULTILOAD PLUG ASSY,4P,KEY E, YEL
2389268-5
ActiveTE Connectivity AMP Connectors
GI3.0MULTILOAD PLUG ASSY,4P,KEY E, YEL
Description
General part information
2389268-5
Housing Assembly, Housing for Female Terminals, Wire-to-Board, 4 Position, 3.55 mm [.14 in] Centerline, Crimp, 2 Row, Yellow, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 2389268-5 |
|---|---|
| Color | Yellow |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.14 in |
| Row Spacing | 0.185 in |
