321277-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, M10, 3/8", 0000 AWG, 117 MM², SOLISTRAND SERIES
321277-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, M10, 3/8", 0000 AWG, 117 MM², SOLISTRAND SERIES
Description
General part information
321277-1

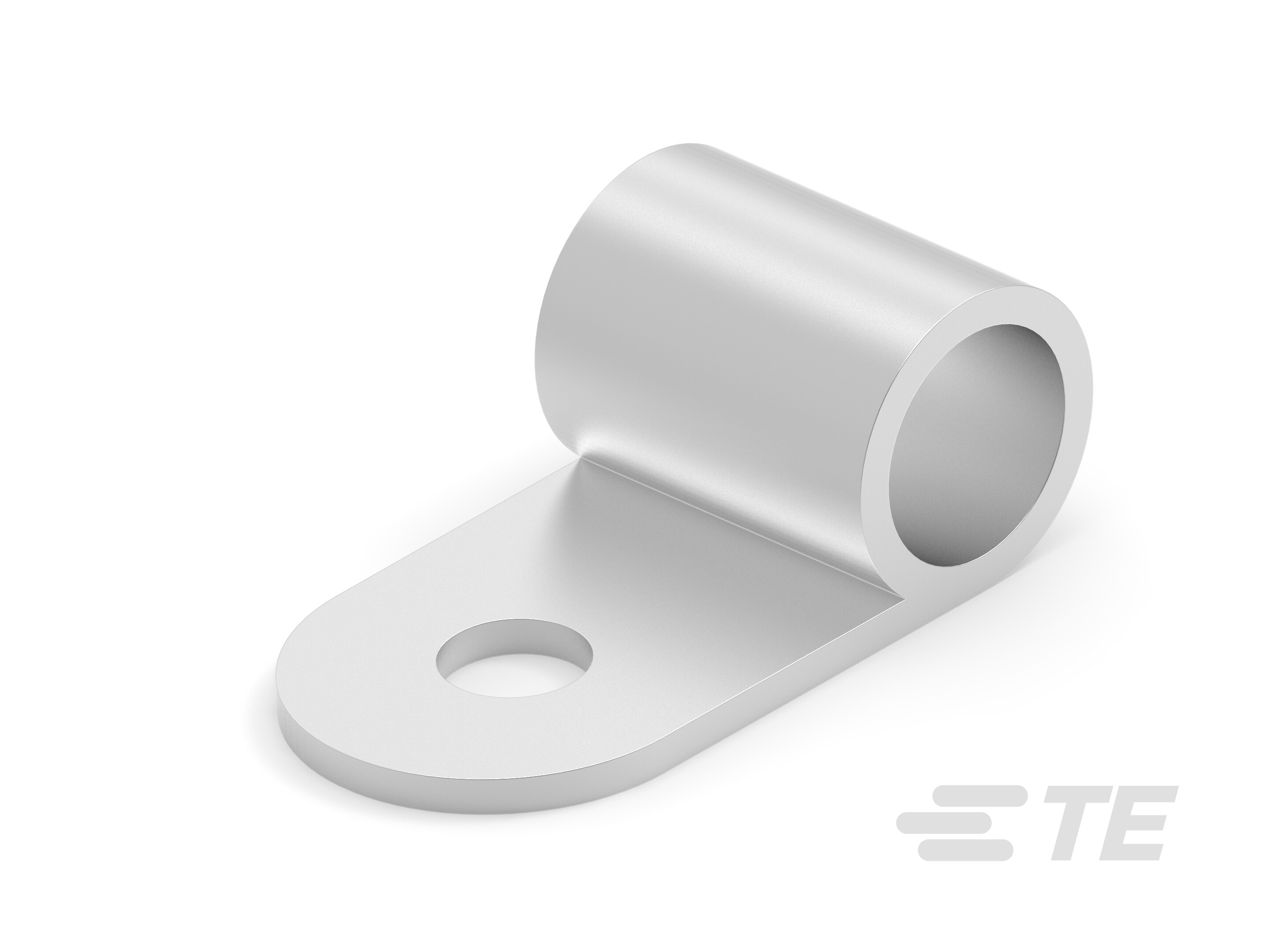

Closed Ring Tongue Terminal, 4/0 AWG, 3/8 Stud, 9.53 mm / 9.91 mm [.39 in] Stud Diameter, Closed Barrel, Flag, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 321277-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination, Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 2.131 in |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Stud/Tab Size | 0.375 in |
| Stud/Tab Size | 3 Stud, 8 Stud |
| Terminal Type | Circular |
| Termination | Flag, Crimb |
| Thickness | 0.102 in |
| Width - Outer Edges | 1.115 in |
| Wire Gauge | 4/0 AWG |
