K222J20C0GH5TK2
ActiveVishay Dale

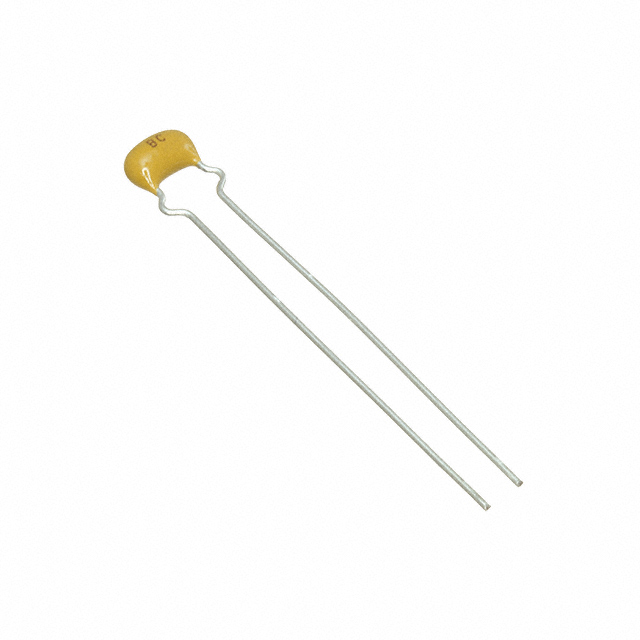

CAP CER 2200PF 100V NP0 RADIAL
K222J20C0GH5TK2
ActiveVishay Dale
CAP CER 2200PF 100V NP0 RADIAL
Description
General part information
K222J20C0GH5TK2
2200 pF ±5% 100V Ceramic Capacitor C0G, NP0 Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | K222J20C0GH5TK2 |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 pF |
| Height - Seated (Max) | 0.335 in |
| Lead Spacing | 0.098 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
