TDS8PC5-V1
ActivePasternack
PLUGRJ45 8X8 SHLD W/SR
TDS8PC5-V1
ActivePasternack
PLUGRJ45 8X8 SHLD W/SR
Description
General part information
TDS8PC5-V1

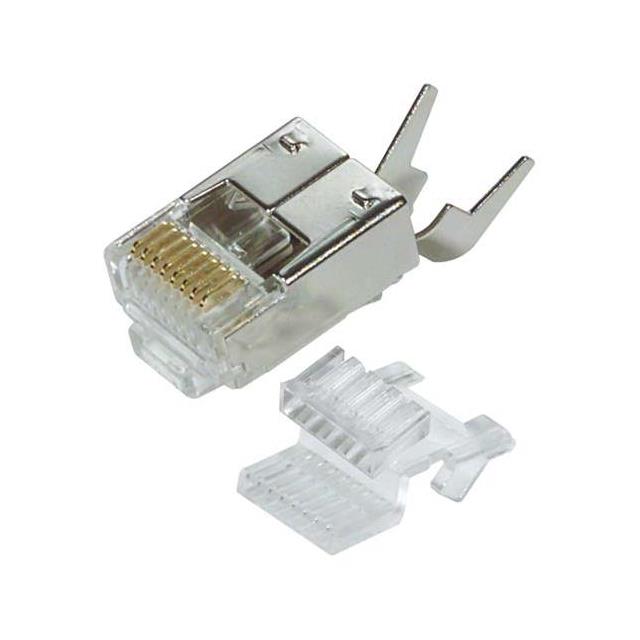

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | TDS8PC5-V1 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Color | Clear |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Housing Material | PC, Polycarbonate |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Shield Material | Brass |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
