Description
General part information

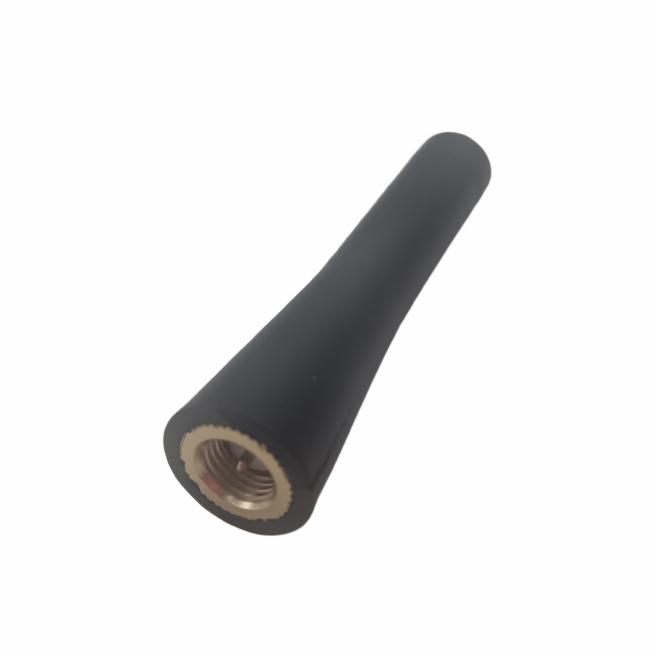

YECT003W1A
EXTERNAL ANTENNA
Technical Specifications
Parameters and characteristics for this part
| Specification | YECT003W1A |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | 4G |
| Frequency (Center/Band) | 2.07GHz, 3.55GHz, 830MHz |
| Frequency (Center/Band) - 1 | 830 MHz |
| Frequency (Center/Band) - 2 | 2.07 GHz |
| Frequency (Center/Band) - 3 | 3.55 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 700 MHz |
| Frequency Range (Band 2) Maximum | 2.69 GHz |
| Frequency Range (Band 2) Minimum | 1.45 GHz |
| Frequency Range (Band 3) Maximum | 3.8 GHz |
| Frequency Range (Band 3) Minimum | 3.3 GHz |
| Gain | 3.7 dBi |
| Height (Max) | 2 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
