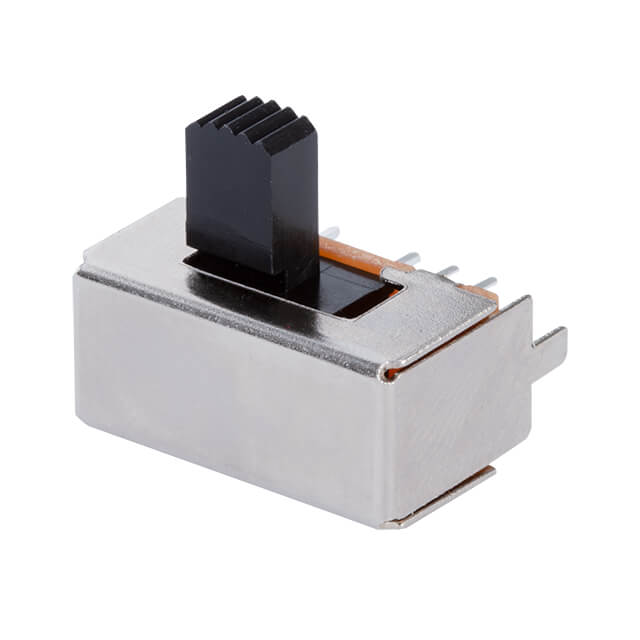

SLW-1981594-8A-RA-S-D
ActiveSame Sky (Formerly CUI Devices)
19.8 X 15 X 9.4 MM, 8 MM RAISED
SLW-1981594-8A-RA-S-D
ActiveSame Sky (Formerly CUI Devices)
19.8 X 15 X 9.4 MM, 8 MM RAISED
Description
General part information
SLW-1981594-8A-RA-S-D
Slide Switch DP3T Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | SLW-1981594-8A-RA-S-D |
|---|---|
| Actuator Length | 8 mm |
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Actuator Type | Standard |
| Circuit | DP3T |
| Contact Finish | Silver |
| Contact Material | Phosphor Copper |
| Contact Timing | Shorting (MBB) |
| Current Rating | 300 mA |
| Electrical Life (Cycles) | 10000 Cycles |
| Mechanical Life (Cycles) | 10000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 0.25 kgf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | On-On-On |
| Switch Travel | 2.5 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 50 V |
