XCKJ10553H7
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, WOBBLE ROD, SPST-NO, SPST-NC, 10 A, 240 V, 0.25 IN-OZ
XCKJ10553H7
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, WOBBLE ROD, SPST-NO, SPST-NC, 10 A, 240 V, 0.25 IN-OZ
Description
General part information
XCKJ10553H7

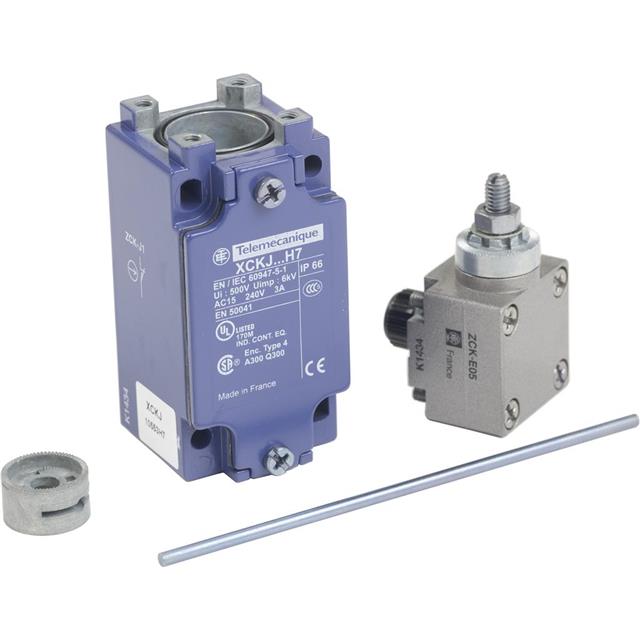

The XCKJ10553H7 is a 1NC+1NO snap-action Limit Switch with metal round rod lever and screw-clamp terminals. It is suitable for materials handling, conveying, machining, service sector, food and beverage.
Technical Specifications
Parameters and characteristics for this part
| Specification | XCKJ10553H7 |
|---|---|
| Actuator Type | Rod, Spring |
| Circuit | DPDT (DB/DM) |
| Current Rating | 3 A, 270 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 30000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
