XS912R4PAM12
ActiveSCHNEIDER ELECTRIC

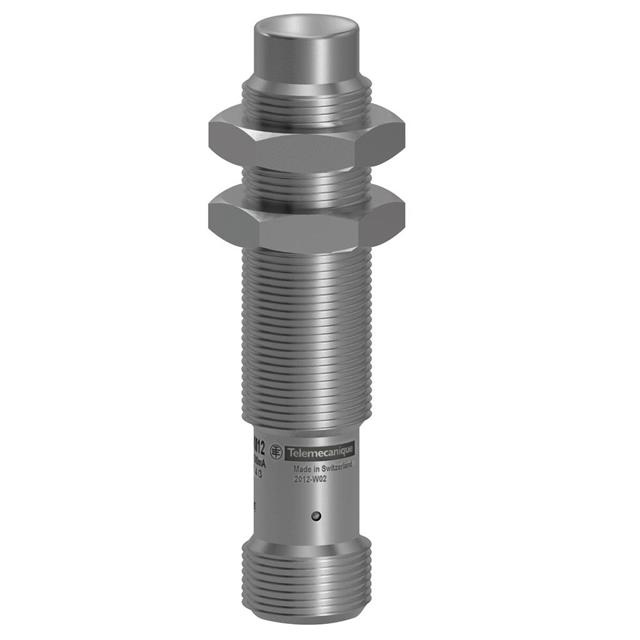

INDUCTIVE PROXIMITY SENSOR, OSISENSE XS 912 SERIES, 10 MM, NON FLUSH MOUNTABLE, STAINLESS STEEL 303
XS912R4PAM12
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS 912 SERIES, 10 MM, NON FLUSH MOUNTABLE, STAINLESS STEEL 303
Description
General part information
XS912R4PAM12
Inductive Proximity Sensor 0.394" (10mm) IP68, IP69K Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS912R4PAM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
