93620901
ActiveSensata-BEI Encoders
HALL EFFECT ROTARY SENSOR
93620901
ActiveSensata-BEI Encoders
HALL EFFECT ROTARY SENSOR
Description
General part information
93620901

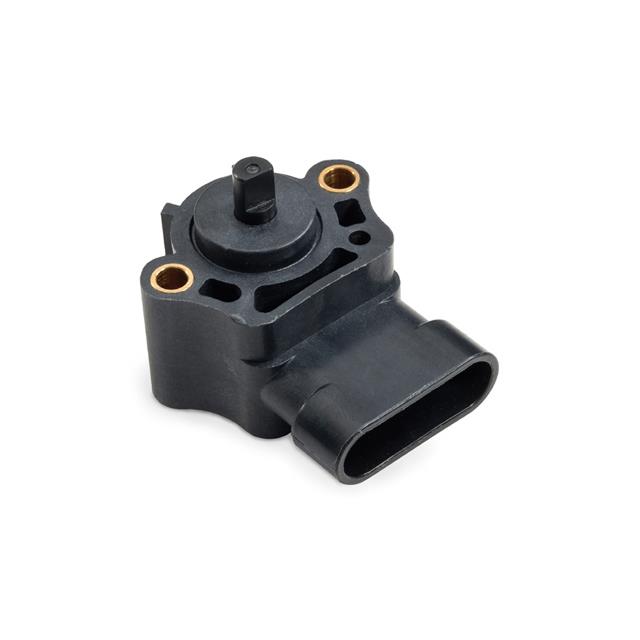

Hall Effect Sensor Rotary Position Flatted Shaft Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 93620901 |
|---|---|
| Actuator Type | Flatted Shaft |
| For Measuring | Rotary Position |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | PWM, Analog Voltage |
| Output Signal | Counterclockwise Increase |
| Package / Case | Box with Connector |
| Rotation Angle - Electrical, Mechanical (Nominal) | 90 ° |
| Rotation Angle - Electrical, Mechanical (Tolerance) | 45 ° |
| Technology | Hall Effect |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 4.75 V |
