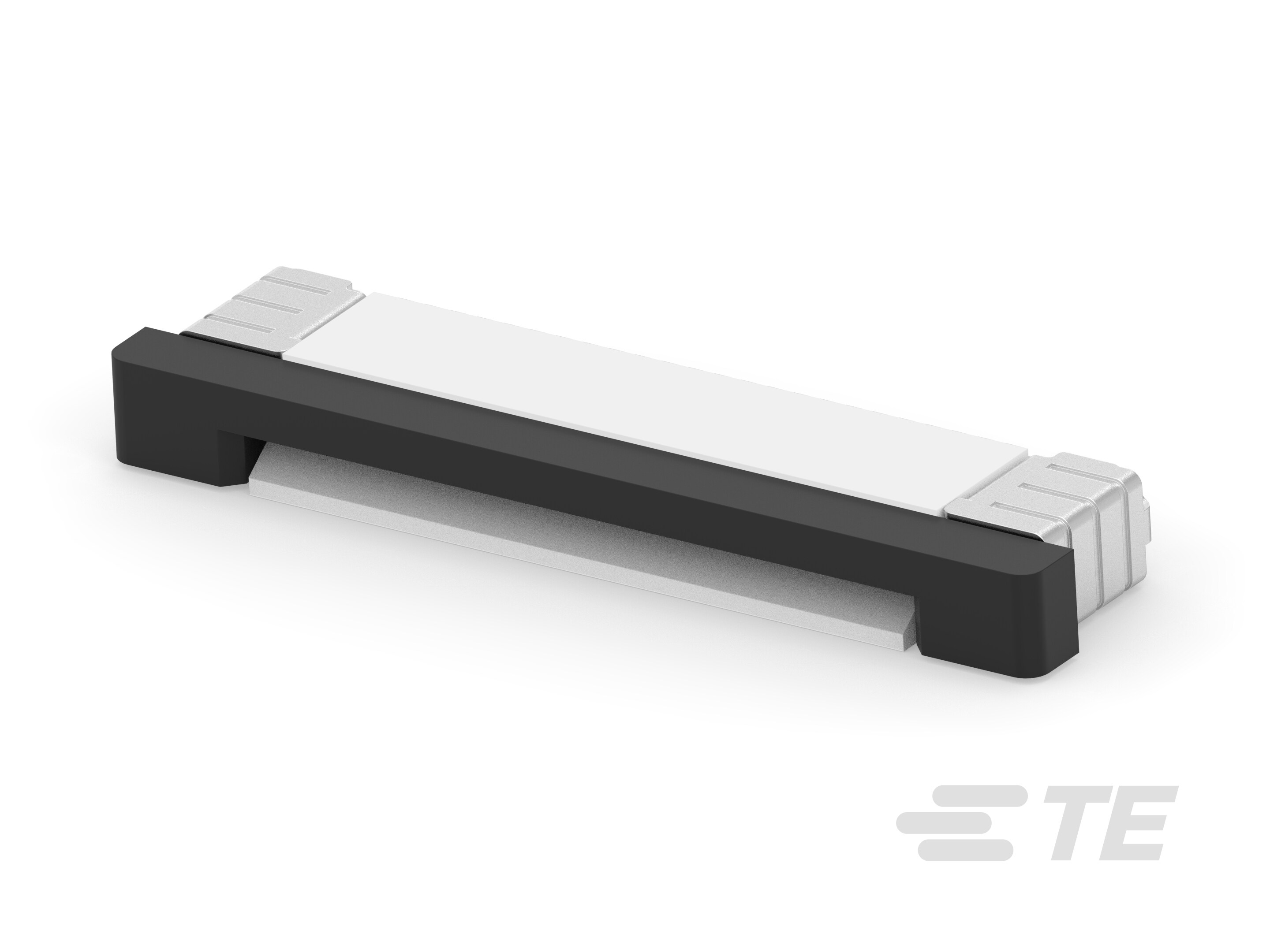

0.5mm Pitch, right angle, Bottom, SMT-2-2492104-4

2-2492104-4

Active
TE Connectivity AMP Connectors

0.5MM PITCH, RIGHT ANGLE, BOTTOM, SMT

Find alt
0.5mm Pitch, right angle, Bottom, SMT-2-2492104-4

2-2492104-4

Active
TE Connectivity AMP Connectors

0.5MM PITCH, RIGHT ANGLE, BOTTOM, SMT

Find alt

Description

General part information

2-2492104-4

.5 mm [.02 in] Centerline, Right Angle, Surface Mount, Stuffer Actuator, Gold Flash, 24 Position, FPC Connectors

Technical Specifications

Parameters and characteristics for this part

Specification2-2492104-4
Actuator MaterialLiquid Crystal Polymer (LCP)
Cable End TypeTabbed
Connector/Contact TypeContacts, Bottom
Contact FinishGold
Contact MaterialPhosphor Bronze
FeaturesSolder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness0.3 mm
Flat Flex TypeFFC, FPC
Height Above Board0.079 in
Housing MaterialLiquid Crystal Polymer, LCP
Locking FeatureSlide Lock
Material Flammability RatingUL94 V-0
Mounting TypeRight Angle, Surface Mount
Number of Positions24 pos
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.02 in
TerminationSolder
Voltage Rating50 V
