Description
General part information

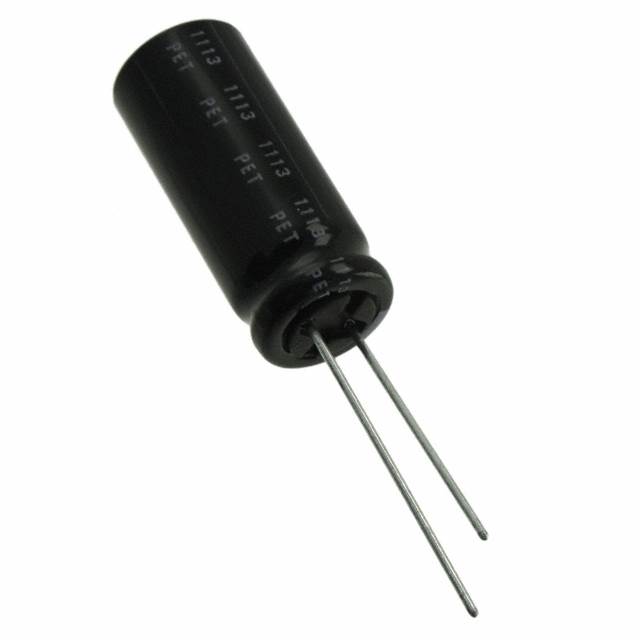

JUWT1226MHD
22 F (EDLC) Supercapacitor 2.7 V Radial, Can 300mOhm @ 1kHz 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | JUWT1226MHD |
|---|---|
| Capacitance | 22 F |
| ESR (Equivalent Series Resistance) | 300 mOhm |
| Height - Seated (Max) | 1.319 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.492 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage - Rated | 2.7 VDC |
