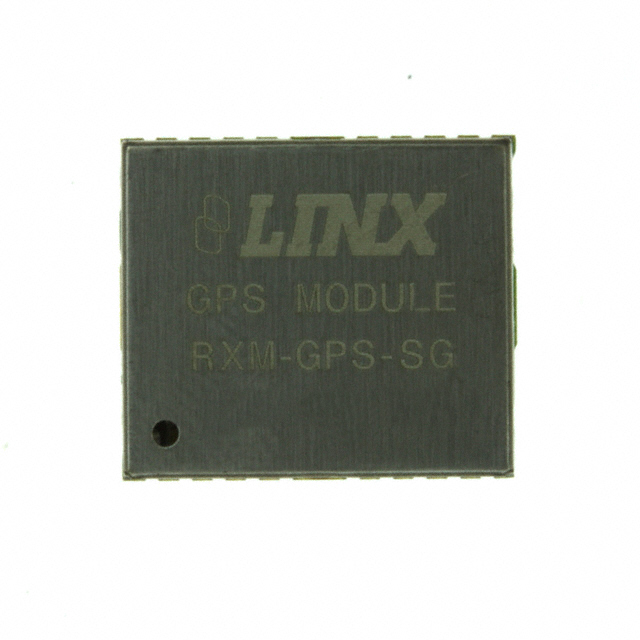

RXM-GPS-SG-B
ObsoleteTE Connectivity AMP Connectors
RF RCVR GPS 1575.42MHZ MODULE
RXM-GPS-SG-B
ObsoleteTE Connectivity AMP Connectors
RF RCVR GPS 1575.42MHZ MODULE
Description
General part information
RXM-GPS-SG-B
SG RF Receiver GPS 1575.42MHz -159dBm PCB, Surface Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | RXM-GPS-SG-B |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Applications | Tracking, Fleet Management, Location, Navigation |
| Current - Receiving | 32 mA |
| Data Interface | Pads for Pins |
| Frequency | 1575.42 MHz |
| Modulation or Protocol | GPS |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Module |
| Package Name | Module |
| Sensitivity | -159 dBm |
| Voltage - Supply (Maximum) | 4.2 V |
| Voltage - Supply (Minimum) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
