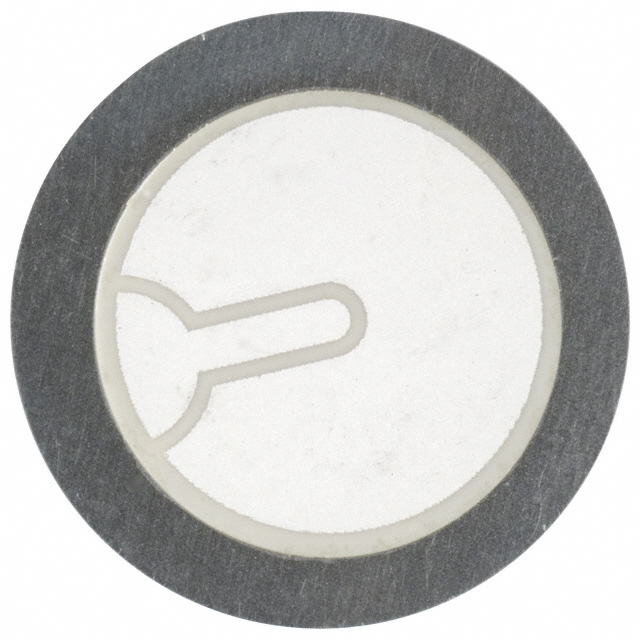

AB2036AF
ActivePUI Audio, Inc.
BUZZER ELEMENT FDBK 3.7KHZ 20MM
AB2036AF
ActivePUI Audio, Inc.
BUZZER ELEMENT FDBK 3.7KHZ 20MM
Description
General part information
AB2036AF
3.7 kHz Feedback Buzzer Element 30V p-p 0.787" Dia (20.00mm) 500 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AB2036AF |
|---|---|
| Capacitance | 20000 pF |
| Frequency | 3.7 kHz |
| Impedance | 500 Ohms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 0.787 in |
| Termination | None |
| Type | Feedback |
| Voltage - Input (Max) | 30 V p-p |
