LCCA31041-FT2
ActivePasternack
PLENUM N MALE RIGHT ANGLE TO SMA
LCCA31041-FT2
ActivePasternack
PLENUM N MALE RIGHT ANGLE TO SMA
Description
General part information
LCCA31041-FT2

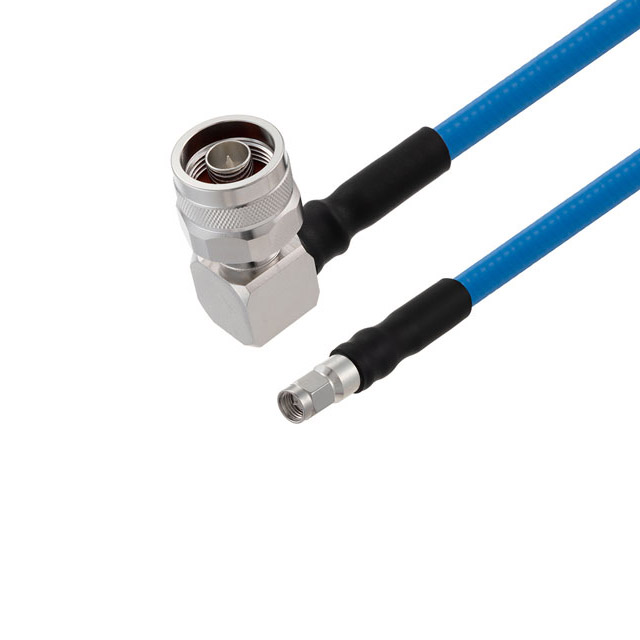

Cable Assembly Coaxial SMA to N-Type SPP-250LLPL 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31041-FT2 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 24 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
