Description

General part information

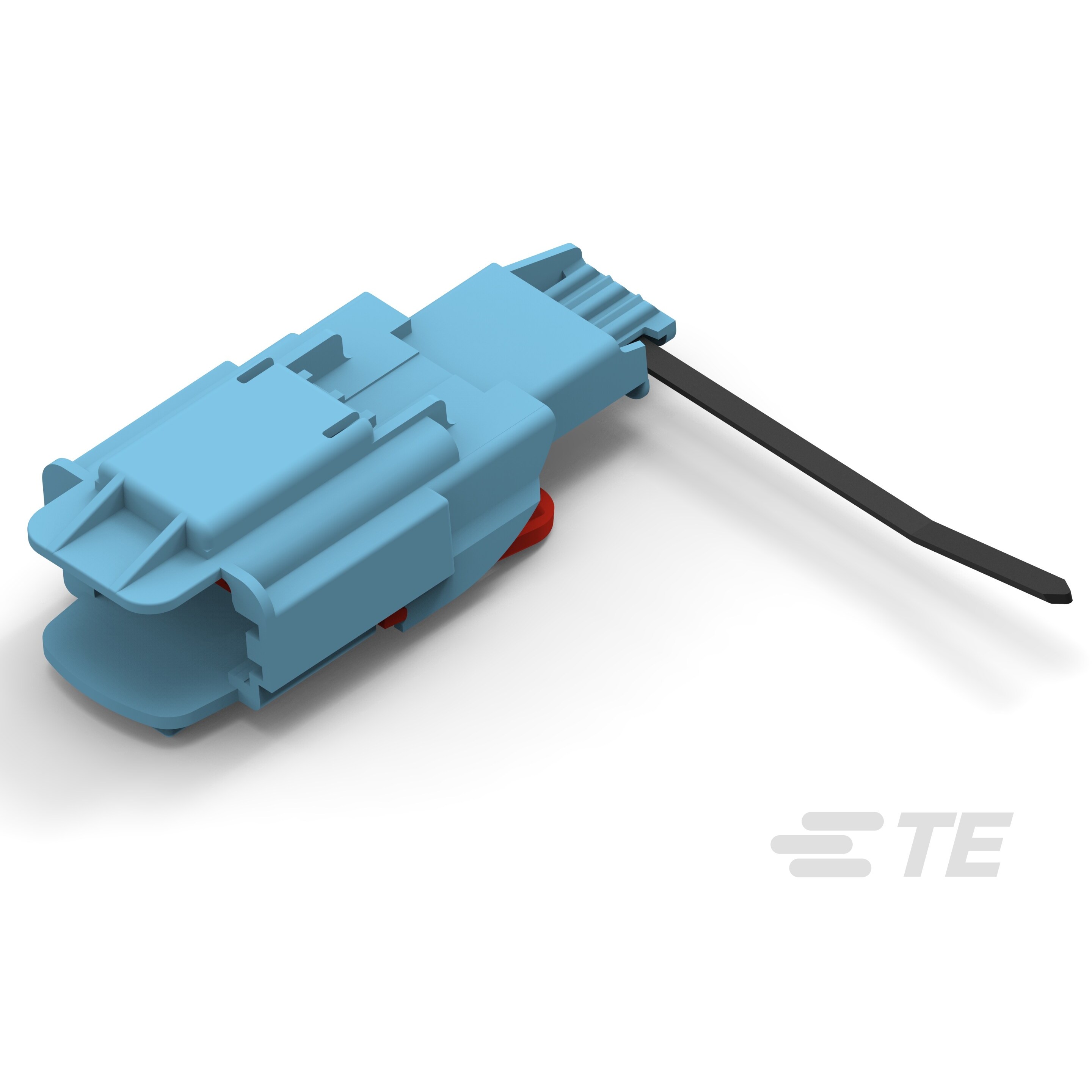

2-953733-4

4 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.33 mm [.131 in] Centerline, Blue, Wire & Cable, Power, AMP MCP Connector System

Technical Specifications

Parameters and characteristics for this part

Specification2-953733-4
ColorBlue
Connector TypePlug
Contact TerminationCrimp
Contact TypeTab
Fastening TypeLatch Holder
FeaturesSecondary Locking Device
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Mounting TypeFree Hanging (In-Line)
Number of Positions4
Number of Rows1
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.131 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
