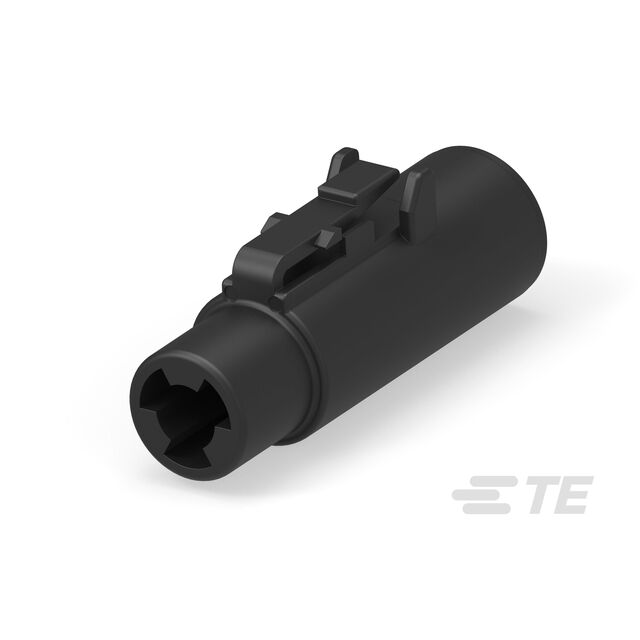

DTCE06-1-8S-E003
ActiveTE Connectivity AMP Connectors
DTCE PLUG ASM
DTCE06-1-8S-E003
ActiveTE Connectivity AMP Connectors
DTCE PLUG ASM
Description
General part information
DTCE06-1-8S-E003
1 Position Housing, Housing for Female Terminals, Wire-to-Wire, Sealable, Black, Wire & Cable, Power, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | DTCE06-1-8S-E003 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 8 |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Polyetherimide (PEI) |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
