3-2295044-8
ActiveTE Connectivity AMP Connectors

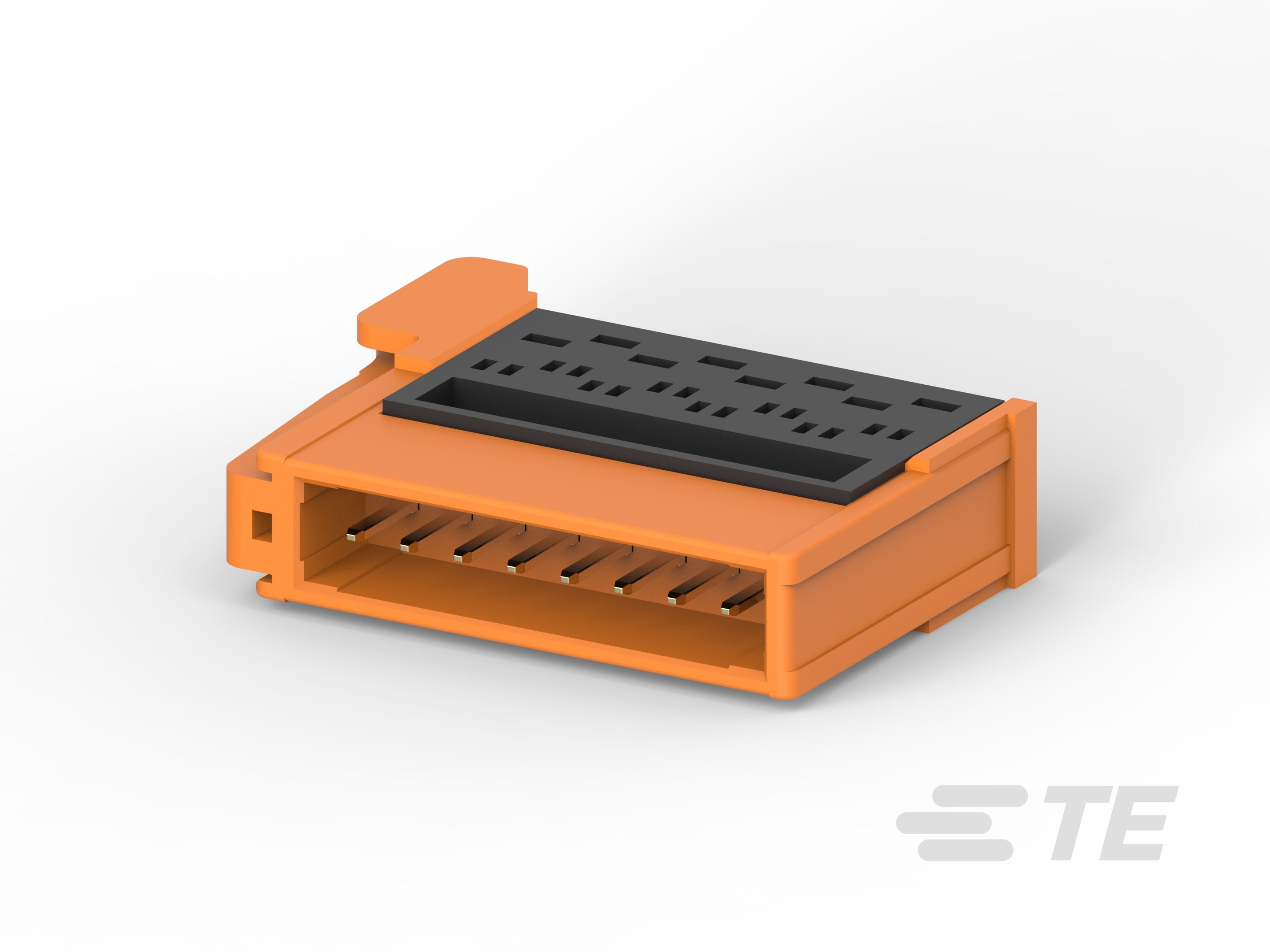

RITS CONN. PLUG ASSY 8P ORANGE TIN
3-2295044-8
ActiveTE Connectivity AMP Connectors
RITS CONN. PLUG ASSY 8P ORANGE TIN
Description
General part information
3-2295044-8
8 Position, Plug, Connector Assembly, Crimp, Wire-to-Board, Gold (Au), UL 94V-0, .079 in Centerline, 1 Row, Wire & Cable, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2295044-8 |
|---|---|
| Cable Termination | Crimp |
| Color | Orange |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 7.87 µin |
| Contact Type | Tab |
| Fastening Type | Push-Pull |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
| Wire Type | Discrete |
