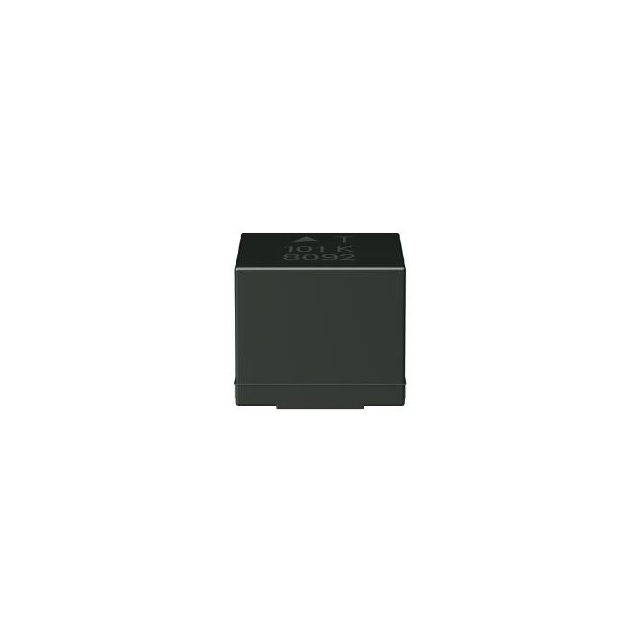

B82442T1684K000
ActiveEPCOS - TDK Electronics
FIXED IND 680UH 210MA 5.87OHM SM
B82442T1684K000
ActiveEPCOS - TDK Electronics
FIXED IND 680UH 210MA 5.87OHM SM
Description
General part information
B82442T1684K000
680 µH Unshielded Drum Core, Wirewound Inductor 210 mA 5.87Ohm Max 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B82442T1684K000 |
|---|---|
| Current - Saturation (Isat) | 380 mA |
| Current Rating | 0.21 A |
| DC Resistance (DCR) (Max) | 5.87 Ohm |
| Frequency - Self Resonant | 2.3 MHz |
| Height - Seated (Max) | 0.209 in |
| Inductance | 680 µH |
| Inductance Frequency - Test | 796 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, J-Lead |
| Q | 20 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
