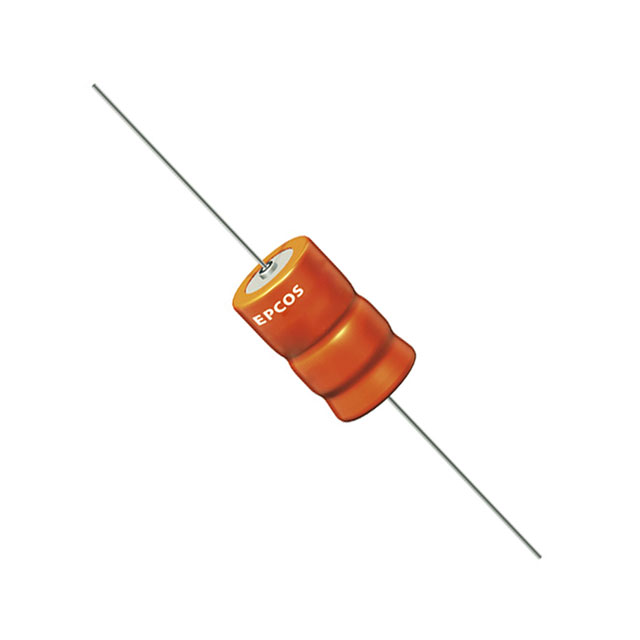

B41693A7687Q7
ObsoleteEPCOS - TDK Electronics
CAP ALUM 680UF 40V AXIAL TH
B41693A7687Q7
ObsoleteEPCOS - TDK Electronics
CAP ALUM 680UF 40V AXIAL TH
Description
General part information
B41693A7687Q7
680 µF 40 V Aluminum Electrolytic Capacitors Axial, Can 160mOhm @ 100Hz 5000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B41693A7687Q7 |
|---|---|
| Applications | Automotive |
| Capacitance | 680 µF |
| ESR (Equivalent Series Resistance) | 160 mOhm |
| Impedance | 75 mOhm |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 2.85 A |
| Size / Dimension Diameter | 0.63 in |
| Size / Dimension Length | 1.181 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 40 V |
