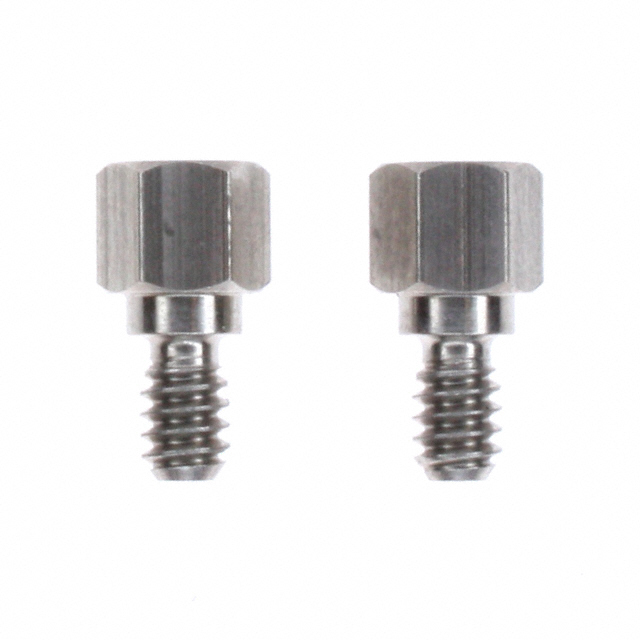

749087-2
ActiveTE Connectivity AMP Connectors
CONNECTOR ACCESSORIES FEMALE SCREW LOCK STRAIGHT STAINLESS STEEL BAG
749087-2
ActiveTE Connectivity AMP Connectors
CONNECTOR ACCESSORIES FEMALE SCREW LOCK STRAIGHT STAINLESS STEEL BAG
Description
General part information
AMPLIMITE 0.50 Series Series
D-Sub Standard Connectors 50 50SR VERT RCPT
Technical Specifications
Parameters and characteristics for this part
| Specification | 749087-2 |
|---|---|
| Accessory Type | Jackscrew Socket |
| For Use With/Related Products | AMPLIMITE Series |
| Length - Below Head | 0.223 in |
| Thread Size | 2-56 Socket, 4-40 Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Technical Data Sheet EN
One Page Summary EN
Product Change Notice EN
Reactivation Notices EN
Drawing EN
Cover Lacing Fixture 91293-1 for AMPLIMITE .050 Series Connectors and AMPMODU 50/50 Grid Connectors
AMPLIMITE .050 Series Cable End Insulation Displacement Connector (IDC) and Printed Circuit (PC) Board Connector
AMPLIMITE Subminiature D Connectors - .050 Series Connector
Installation and Use of Mass Termination Tooling
Datasheet
Tooling Kit 768900-1
Connector, AMPLIMITE, Shielded, .050 Series
ENG_CD_749087_M3.pdf
Cover Closing Kits 543508-1 and 543526-1 and Staple Inserter Kit 543515-1 for AMPLIMITE .050 Series Connector Assembly
.050 Series Shielded AMPLIMITE Connector
