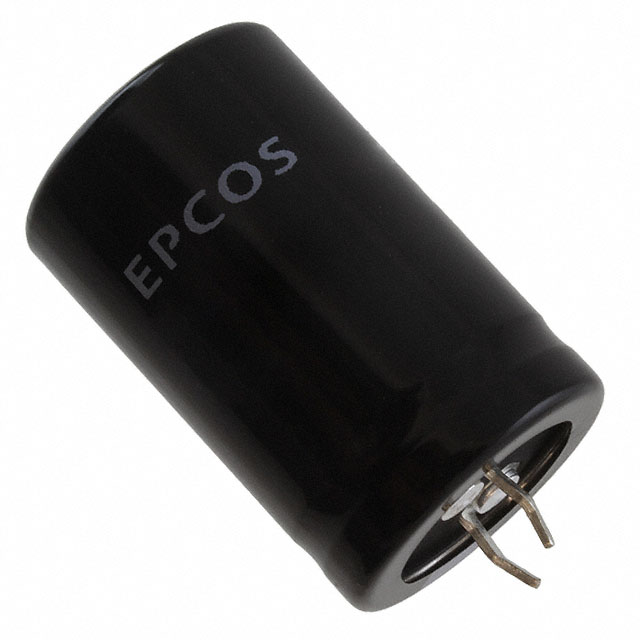

Specification	B43540A2687M000

Applications	General Purpose
Capacitance	680 µF
ESR (Equivalent Series Resistance)	130 mOhm
Height - Seated (Max)	1.654 in
Impedance	0.16 Ohms
Lead Spacing	0.394 in
Lifetime	10000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	2.58 A
Size / Dimension Diameter	0.984 in
Tolerance	20 %
Voltage - Rated	200 VDC
