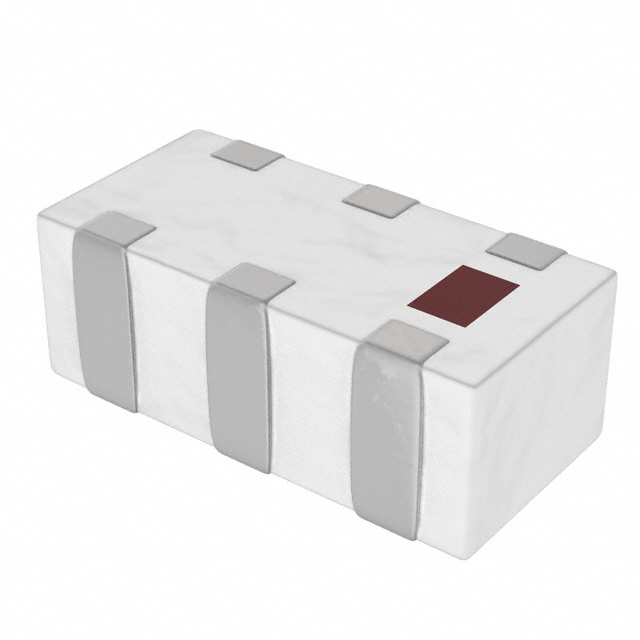

4000BL14U0100001T
ObsoleteJohanson Technology Inc.
BALUN 3.1GHZ-4.8GHZ 50/100 0603
4000BL14U0100001T
ObsoleteJohanson Technology Inc.
BALUN 3.1GHZ-4.8GHZ 50/100 0603
Description
General part information
4000BL14U0100001T
RF Balun 3.1GHz ~ 4.8GHz 50 / 100Ohm 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 4000BL14U0100001T |
|---|---|
| Frequency Range (Max) | 4.8 GHz |
| Frequency Range (Min) | 3.1 GHz |
| Impedance - Balanced | 100 Ohm |
| Impedance - Unbalanced | 50 Ohm |
| Insertion Loss (Max) | 1.2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Phase Difference | 180 ° |
| Phase Difference Tolerance | 20 ° |
| Return Loss (Min) | 9.5 dB |
