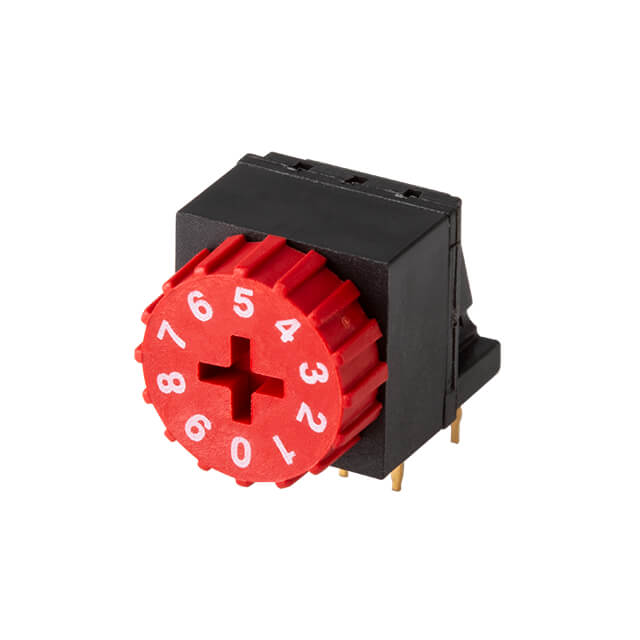

RDS6-10S-1011-3-RA-254-D

RDS6-10S-1011-3-RA-254-D

Active
Same Sky (Formerly CUI Devices)

SWITCH DIP N.O./N.C. SP10T 10 NUMBERED DIAL 0.15A 42VDC PC PINS 2.54MM THRU-HOLE TUBE

Find alt
RDS6-10S-1011-3-RA-254-D

RDS6-10S-1011-3-RA-254-D

Active
Same Sky (Formerly CUI Devices)

SWITCH DIP N.O./N.C. SP10T 10 NUMBERED DIAL 0.15A 42VDC PC PINS 2.54MM THRU-HOLE TUBE

Find alt

Description

General part information

RDS6-10S-1011-3-RA-254-D

Dip Switch BCD Position Through Hole, Right Angle Rotary with Shaft Actuator 150mA 42VDC

Technical Specifications

Parameters and characteristics for this part

SpecificationRDS6-10S-1011-3-RA-254-D
Actuator LevelRaised
Actuator TypeRotary with Shaft
Body MaterialPolyamide, Nylon 6/6, PA66
CircuitBCD
Contact FinishGold
Contact MaterialPhosphor Bronze
Current Rating150 mA
Electrical Life (Steps)10000 Steps
Height Above Board0.394 in
Length0.394 in
Mounting TypeThrough Hole, Right Angle
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.1 in
Pitch TypeFull
Termination StylePC Pin
Voltage Rating42 V
WashableNo

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
