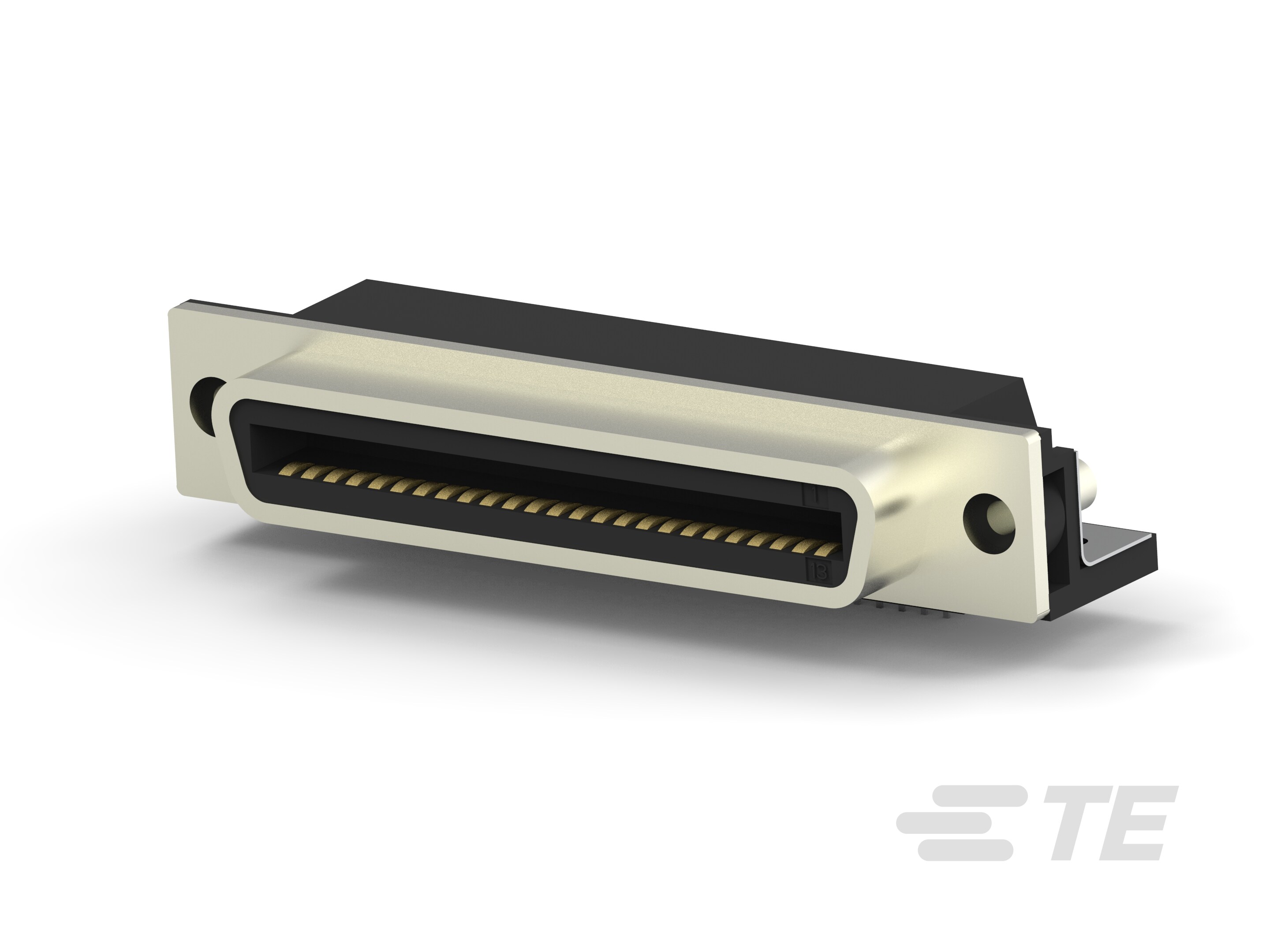

ASSY,EMI RCPT,50 POSN,SCR LK-5553813-3

5553813-3

Active
TE Connectivity AMP Connectors

I/O CONNECTOR, 50 CONTACTS, RECEPTACLE, WIRE TO BOARD, THROUGH HOLE, CHAMP SERIES, PCB MOUNT

Find alt
ASSY,EMI RCPT,50 POSN,SCR LK-5553813-3

5553813-3

Active
TE Connectivity AMP Connectors

I/O CONNECTOR, 50 CONTACTS, RECEPTACLE, WIRE TO BOARD, THROUGH HOLE, CHAMP SERIES, PCB MOUNT

Find alt

Description

General part information

5553813-3

50 Position D-Shaped Connector, Receptacle, Cable-to-Board, Panel Mount & Board Mount, 2.16 mm [.085 in] Centerline, Printed Circuit Board, Signal

Technical Specifications

Parameters and characteristics for this part

Specification5553813-3
Connector StyleOuter Shroud Contacts
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness30 µin
FeaturesShielded
Flange FeatureShell (4-40), Housing
Mounting TypePanel Mount, Through Hole, Right Angle
Number of Positions50
Number of Rows2
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
