7935-2-15-20-06-14-11-0
ActiveMill-Max Manufacturing Corp.

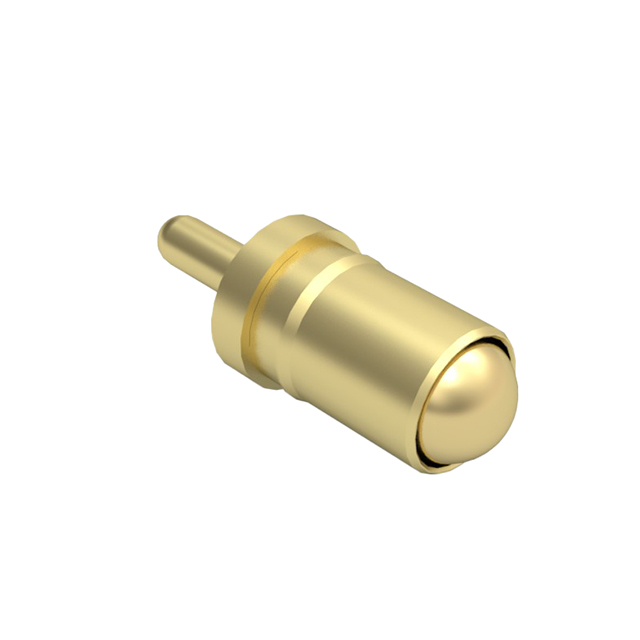

LOW PROFILE OMNIBALL WITH 3MM SO
7935-2-15-20-06-14-11-0
ActiveMill-Max Manufacturing Corp.
LOW PROFILE OMNIBALL WITH 3MM SO
Description
General part information
7935-2-15-20-06-14-11-0
LOW PROFILE OMNIBALL WITH 3MM SO
Technical Specifications
Parameters and characteristics for this part
| Specification | 7935-2-15-20-06-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve, Plunger |
| Current Rating | 6.4 A |
| Mating Cycles | 1000000 cycles |
| Maximum Working Height | 0.178 in |
| Minimum Working Height | 0.178 in |
| Mounting Type | Through Hole |
| Operating Force - Initial | 30 gf |
| Operating Force - Mid Compression | 80 gf |
| Pad Layout Diameter | 0.122 in |
| Pad Layout Shape | Circular |
| Plunger Diameter | 0.091 in |
| Recommended Working Height | 0.193 in |
