L000423-03

L000423-03

Active
TE Connectivity AMP Connectors

RF ANTENNA, 4.9 TO 7.2GHZ, 3.3DBI ROHS COMPLIANT: YES

Find alt
L000423-03

L000423-03

Active
TE Connectivity AMP Connectors

RF ANTENNA, 4.9 TO 7.2GHZ, 3.3DBI ROHS COMPLIANT: YES

Find alt

Description

General part information

L000423-03

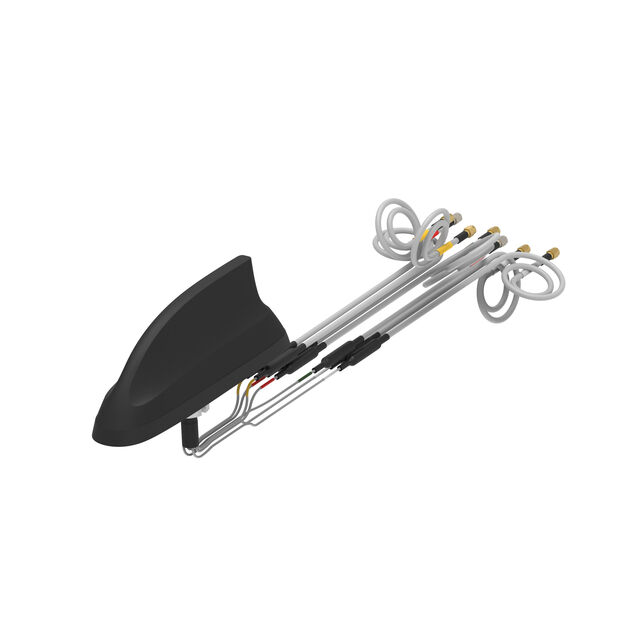

Shark Fin Antenna, Multi Band, Vehicular, External Mount, Stud Mount, RP-SMA / SMA, Omnidirectional, Multiple Ports, 3 < 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationL000423-03
Antenna TypeModule
Applications5G, LTE, GNSS, Wi‑Fi
Frequency (Center/Band)1.18GHz, 2.45GHz, 6.05GHz, 1.58GHz, 3.871GHz, 1.56GHz, 1.6GHz
Frequency (Center/Band) - 12.45 GHz
Frequency (Center/Band) - 21.18 GHz
Frequency (Center/Band) - 31.56 GHz
Frequency (Center/Band) - 41.58 GHz
Frequency (Center/Band) - 51.6 GHz
Frequency (Center/Band) - 63.871 GHz
Frequency (Center/Band) - 76.05 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum2.5 GHz
Frequency Range (Band 1) Minimum617 MHz
Frequency Range (Band 2) Maximum7.125 GHz
Frequency Range (Band 2) Minimum2.4 GHz
Frequency Range (Band 3) Maximum7.2 GHz
Frequency Range (Band 3) Minimum4.9 GHz
Mounting TypePanel Mount
Number of Bands7
RF Family/StandardCellular, Navigation, WiFi
Termination Count (SMA Male)5
Termination TypeSMA Male, RP-SMA Male
