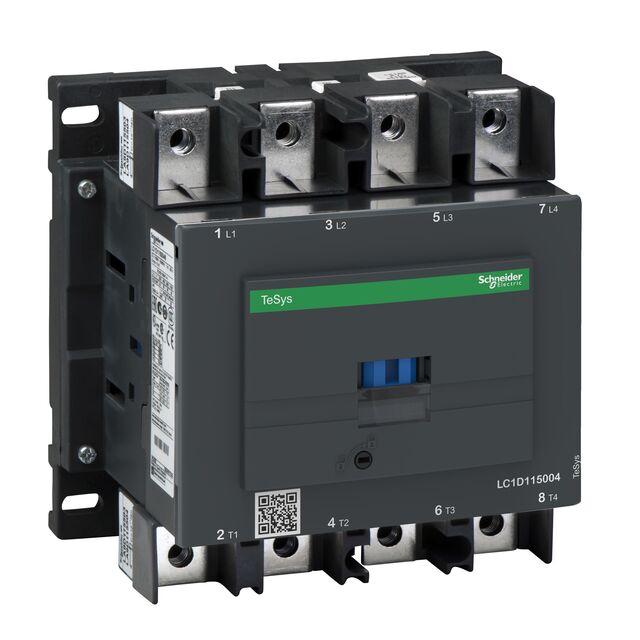

CONTACTOR TESYS DECA 200A 4P 24V
LC1D1150046BD
ActiveSCHNEIDER ELECTRIC
CONTACTOR TESYS DECA 200A 4P 24V
Description
General part information
LC1D1150046BD
CONTACTOR TESYS DECA 200A 4P 24V
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D1150046BD |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 200 A |
| Features | Suppressor |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 35 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 75 ms |
| Switching Voltage AC (Max) | 1000 VAC |
| Switching Voltage DC (Max) | 460 VDC |
| Termination Style | Box Lug |
