224516-E
ActiveTE Connectivity AMP Connectors

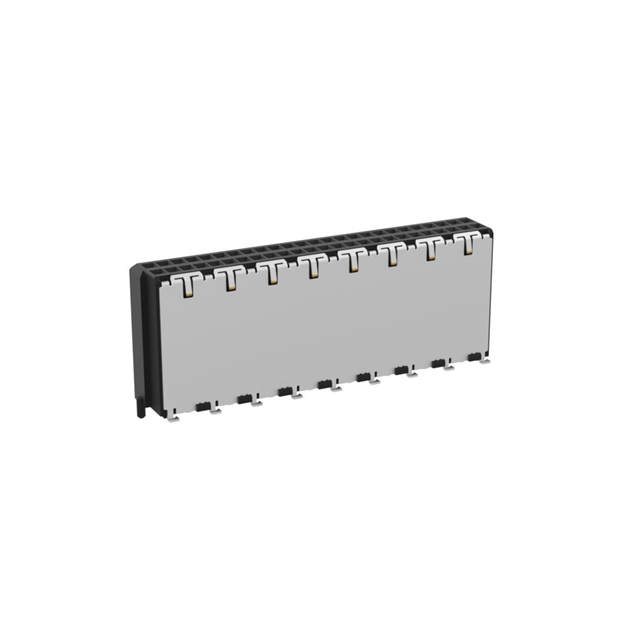

CONN BOARD TO BOARD F 50 POS 1MM SOLDER ST SMD T/R
224516-E
ActiveTE Connectivity AMP Connectors
CONN BOARD TO BOARD F 50 POS 1MM SOLDER ST SMD T/R
Description
General part information
- Series
PCB Mount Receptacle, Vertical, Board-to-Board, 50 Position, 1 mm [.039 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI MicroSpeed
Technical Specifications
Parameters and characteristics for this part
| Specification | 224516-E |
|---|---|
| Connector Type | Array, Female Sockets |
| Contact Finish | Gold |
| Features | Board Guide, Pick and Place, Ground Bus (Plane) |
| Height Above Board | 0.386 in |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch | 0.039 in |
