284875-1
ActiveTE Connectivity AMP Connectors

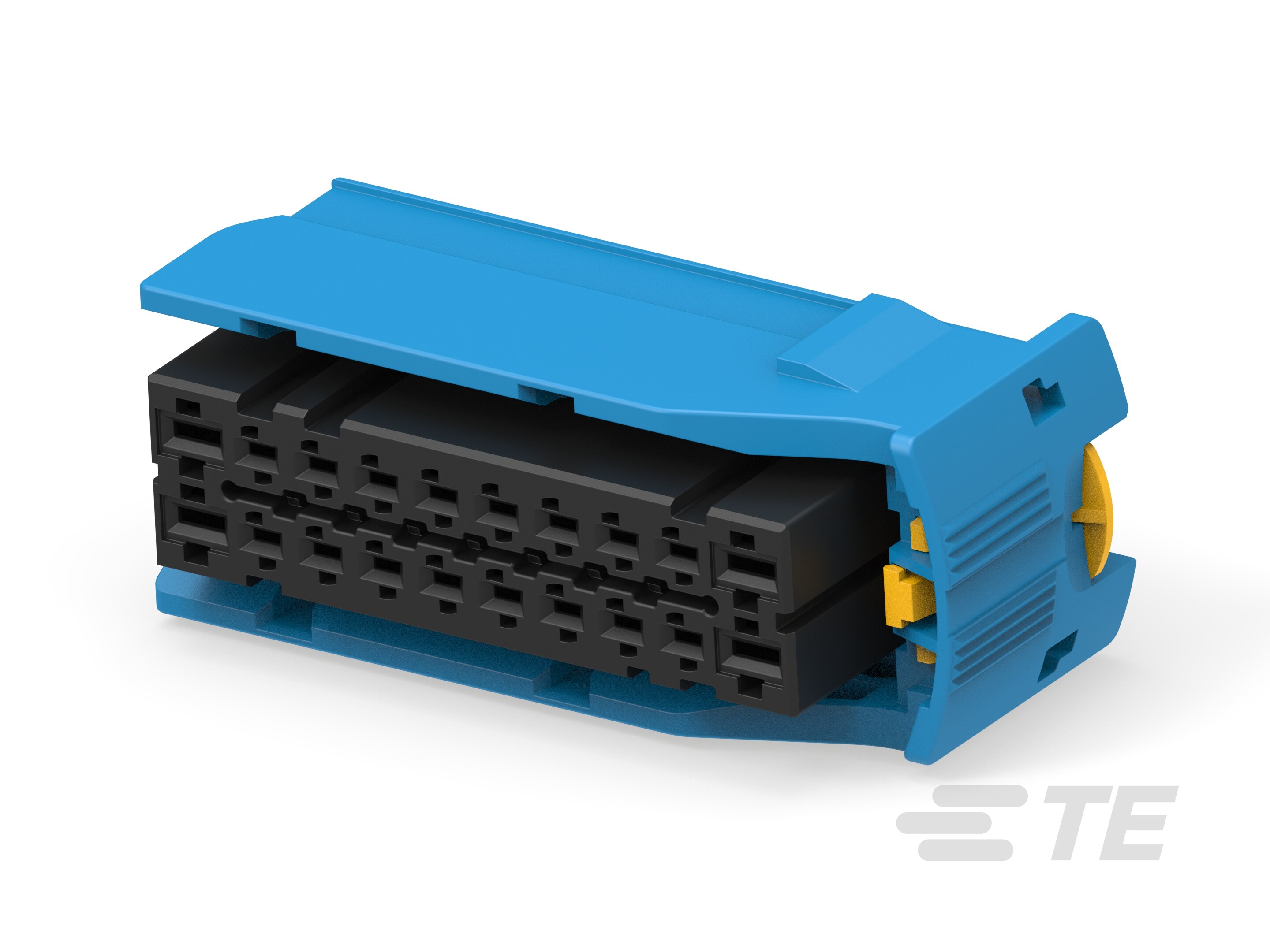

20 POS FEMALE CONN ASSY
284875-1
ActiveTE Connectivity AMP Connectors
20 POS FEMALE CONN ASSY
Description
General part information
AMP MCP 1.5K Series
20 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.2 mm [.16 in] Centerline, Black, Wire & Cable, Power, Hybrid
Technical Specifications
Parameters and characteristics for this part
| Specification | 284875-1 |
|---|---|
| Color | Black |
| Connector Type | Housing for Female Insert |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Connector Position Assurance (CPA), Terminal Position Assurance (TPA) |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch | 0.165 in |
| Row Spacing | 0.118 in |
