1-284061-2

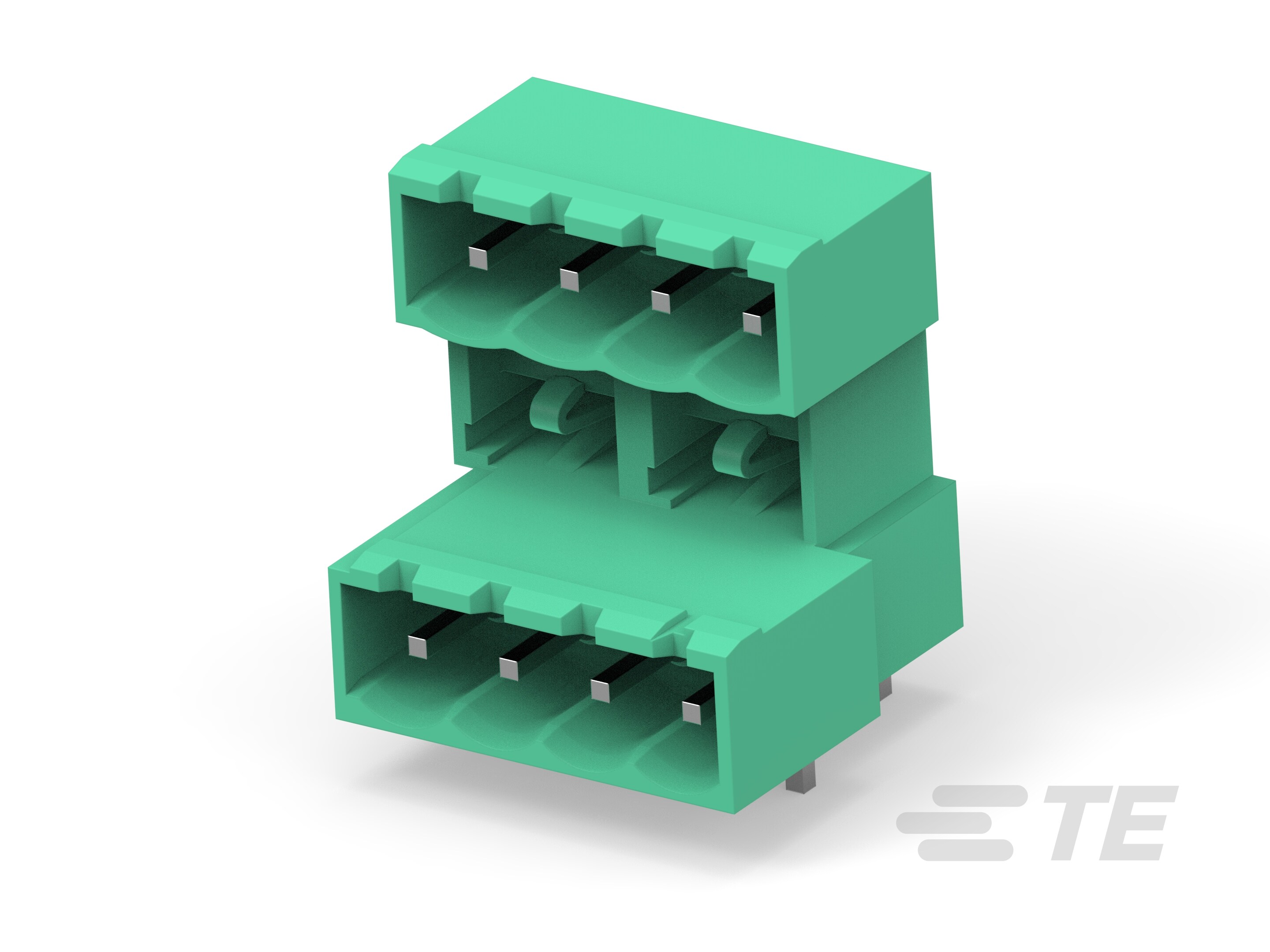

12 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 2 Row, 30 – 12 AWG, .05 – 3 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-284061-2 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 12 A |
| Features | Interlocking (Side) |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 24 pos |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Positions Per Level | 12 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
