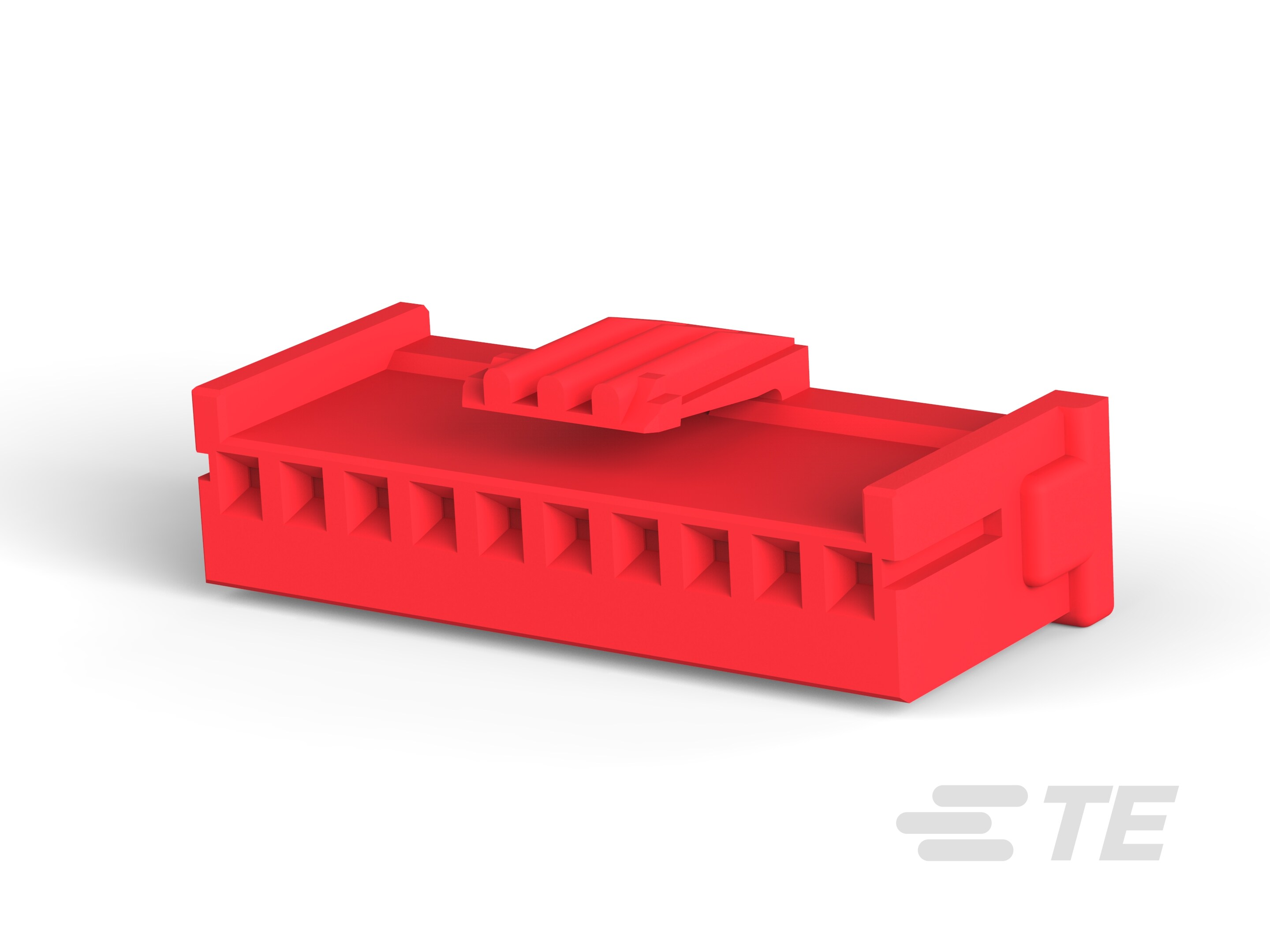

2.5 S.D.L. PLUG HSG 10P RED-917694-2

917694-2

Active
TE Connectivity AMP Connectors

2.5 S.D.L. PLUG HSG 10P RED CONN

Find alt
2.5 S.D.L. PLUG HSG 10P RED-917694-2

917694-2

Active
TE Connectivity AMP Connectors

2.5 S.D.L. PLUG HSG 10P RED CONN

Find alt

Description

General part information

917694-2

10 Position, Plug, Housing, Wire-to-Board, 2.5 mm [.098 in] Centerline, 1 Row, 250 VAC, Wire & Cable, Signal, AMP Signal Double Lock

Technical Specifications

Parameters and characteristics for this part

Specification917694-2
ColorRed
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLocking Ramp
Insulation MaterialPolyamide (PA66), Nylon 6/6
Mounting TypeFree Hanging (In-Line)
Number of Positions10
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Pitch0.098 in
