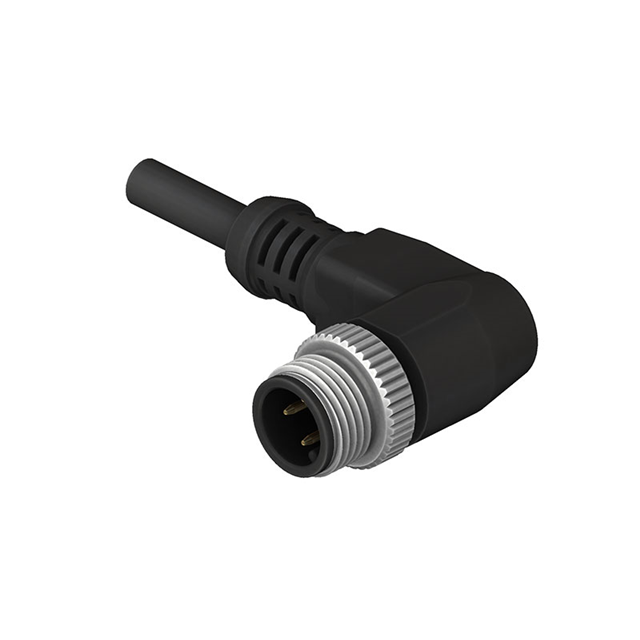

Specification	1072M12-04-1-1-RA-00200

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Right Angle, Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	6.56 ft
Shielding	Unshielded
Usage	Industrial Environments

1072M12 Series

Part	Ingress Protection Description	Ingress Protection IP Rating	1st Connector Type	Shielding	Length	Cable Type	1st Connector Number of Positions Loaded	1st Connector Number of Positions	1st Connector Mounting Type	Cable Material	1st Connector Orientation	Assembly Configuration	1st Connector Shell Size - Insert	1st Connector Gender	Color	2nd Connector Type	Usage
CNC Tech 1072M12-03-1-4-RA-00100	Dust Tight Waterproof	IP67	Receptacle Right Angle	Unshielded	3.28 ft	Round	All	3 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	D	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-04-1-4-RA-00100	Dust Tight Waterproof	IP67	Receptacle Right Angle	Unshielded	3.28 ft	Round	All	4 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	D	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-08-1-1-RA-00150	Dust Tight Waterproof	IP67	Receptacle Right Angle	Unshielded	4.92 ft	Round	All	8 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	A	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-05-1-4-RA-00050	Dust Tight Waterproof	IP67	Receptacle Right Angle	Unshielded	1.64 ft	Round	All	5 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	D	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-05-1-1-RA-00200	Dust Tight Waterproof	IP67	Receptacle Right Angle	Unshielded	6.56 ft	Round	All	5 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	A	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-05-1-1-S-00200	Dust Tight Waterproof	IP67	Receptacle	Unshielded	6.56 ft	Round	All	5 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	A	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-03-1-1-RA-00150	Dust Tight Waterproof	IP67	Receptacle Right Angle	Unshielded	4.92 ft	Round	All	3 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	A	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-04-1-1-S-00050	Dust Tight Waterproof	IP67	Receptacle	Unshielded	1.64 ft	Round	All	4 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	A	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-05-1-1-RA-00150	Dust Tight Waterproof	IP67	Receptacle Right Angle	Unshielded	4.92 ft	Round	All	5 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	A	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments
CNC Tech 1072M12-03-1-1-S-00050	Dust Tight Waterproof	IP67	Plug	Unshielded	1.64 ft	Round	All	3 positions	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	A	Standard	M12	Male Pins	Black	Wire Leads	Industrial Environments

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1072M12-04-1-1-RA-00200 | Datasheet
