Description
General part information

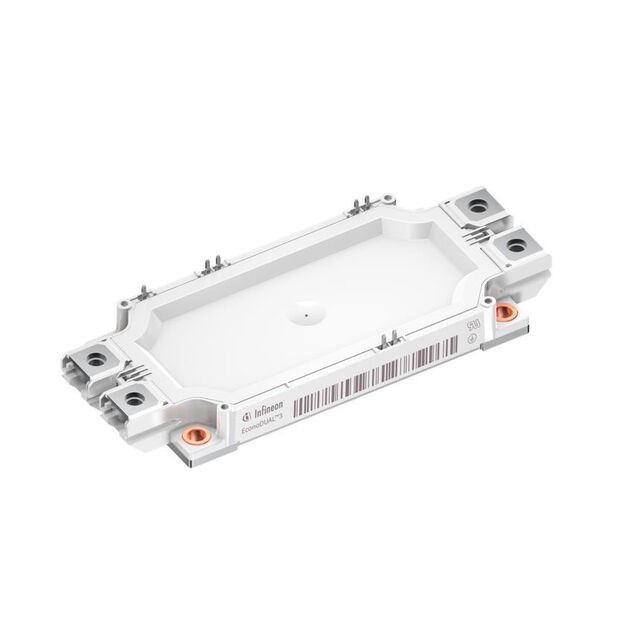

FF900R17ME7WB11BPSA1
EconoDUAL™ 31700 V, 900 A dualTRENCHSTOP™ IGBT7module with emitter controlled 7 diode, NTC, PressFIT contact technology and wave structure on the base plate.
Technical Specifications
Parameters and characteristics for this part
| Specification | FF900R17ME7WB11BPSA1 |
|---|---|
| Channel Count | 2 |
| Configuration | Independent |
| Current - Collector (Ic) (Max) | 900 A |
| Current - Collector Cutoff (Max) | 5 mA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 93800 pF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | AG-ECONOD |
| Power - Max | 20 mW |
| Vce(on) (Max) | 1.85 V |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
