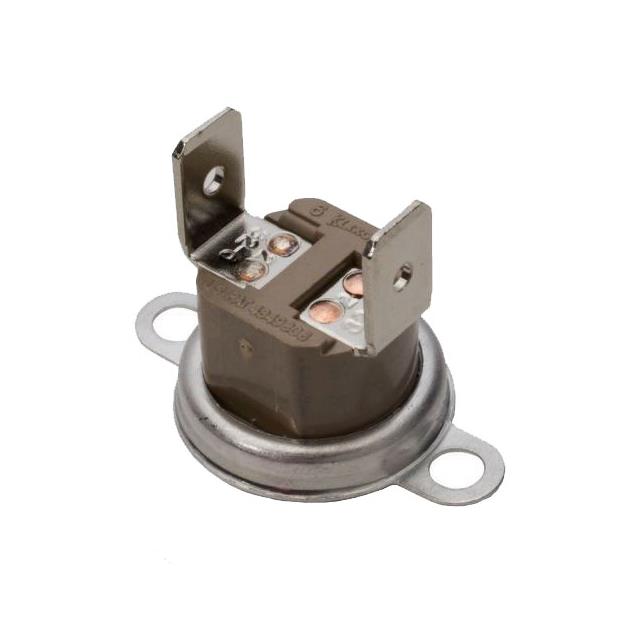

Specification	1NT01L-7938

Circuit	SPST-NC
Current Rating - AC	17 A, 5 A
Mounting Type	Chassis Mount
Package / Case	Cylinder with Mounting Flange
Reset Temperature	147.2 °F
Switching Cycles	100 Kcycles
Switching Temperature	167 °F
Termination Style	Quick Connect
Tolerance	5.4 °F

1NT01L Series

Part	Mounting Type	Switching Temperature	Current Rating - AC	Switching Cycles	Termination Style	Reset Temperature	Circuit	Tolerance	Package / Case
Sensata-Crydom 1NT01L-8413	Chassis Mount	45 °C	5 A 17 A	100 Kcycles	Quick Connect	77 °F	SPST-NC	5.5 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-7950	Chassis Mount	302 °F	5 A 17 A	100 Kcycles	Quick Connect	262.4 °F	SPST-NC	9 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-7939	Chassis Mount	80 °C	5 A 17 A	100 Kcycles	Quick Connect	156.2 °F	SPST-NC	5.4 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-7949	Chassis Mount	140 °C	5 A 17 A	100 Kcycles	Quick Connect	258.8 °F	SPST-NC	7.2 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-8421	Chassis Mount	85 °C	5 A 17 A	100 Kcycles	Quick Connect	149 °F	SPST-NC	5.5 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-7940	Chassis Mount	85 °C	5 A 17 A	100 Kcycles	Quick Connect	165.2 °F	SPST-NC	5.4 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-8425	Chassis Mount	221 °F	5 A 17 A	100 Kcycles	Quick Connect	23 °F	SPST-NC	6.5 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-7953	Chassis Mount	356 °F	5 A 17 A	100 Kcycles	Quick Connect	316.4 °F	SPST-NC	9 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-8416	Chassis Mount	60 °C	5 A 17 A	100 Kcycles	Quick Connect	40 °C	SPST-NC	5.5 °F	Cylinder with Mounting Flange
Sensata-Crydom 1NT01L-8420	Chassis Mount	80 °C	5 A 17 A	100 Kcycles	Quick Connect	140 °F	SPST-NC	5.5 °F	Cylinder with Mounting Flange
