2385012-7
ActiveTE Connectivity AMP Connectors

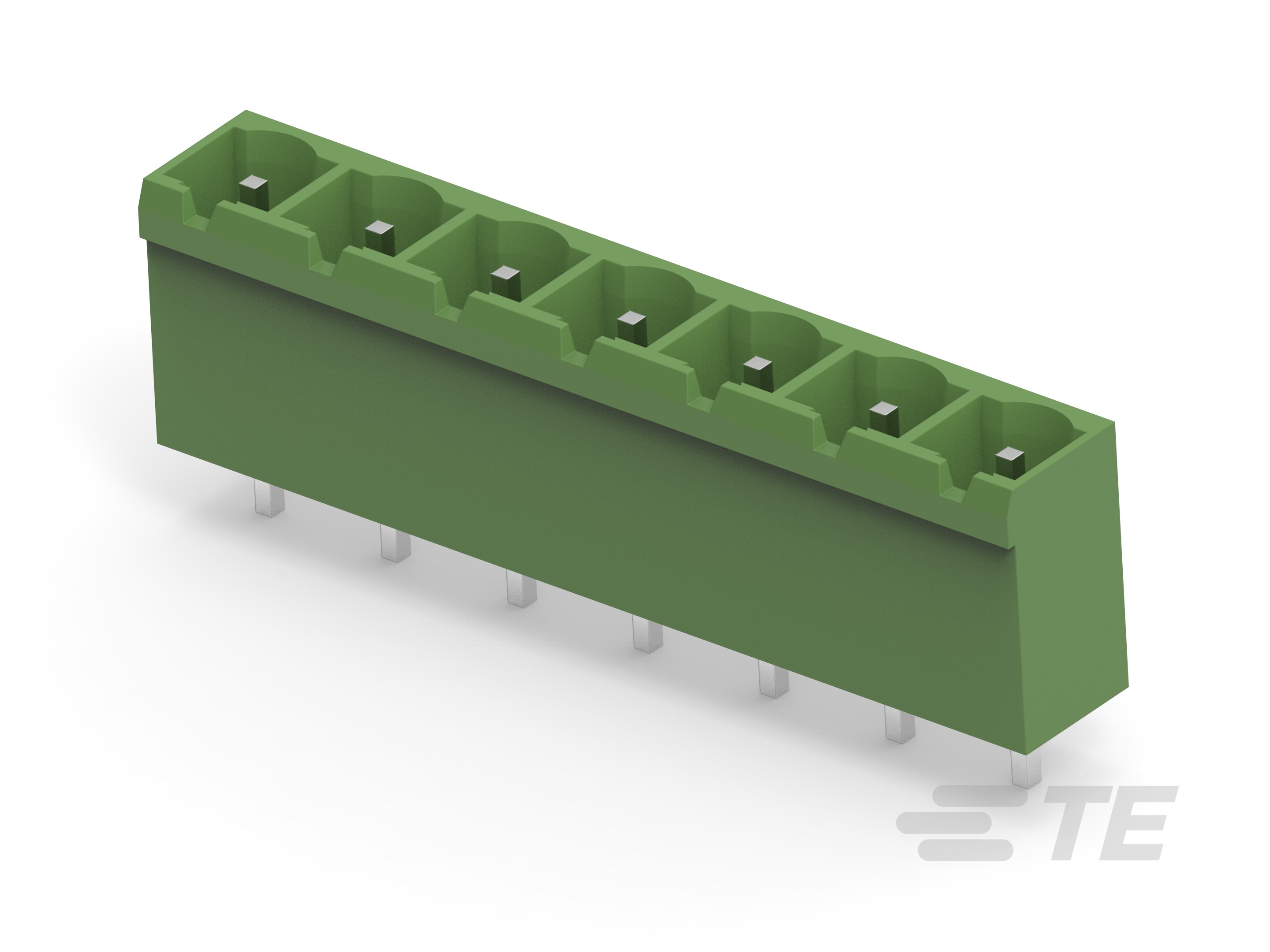

PLUGGABLE TERMINAL BLOCKS 7P TB HDR 180 DEG,PITCH 7.62 &TL 4.5MM
2385012-7
ActiveTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCKS 7P TB HDR 180 DEG,PITCH 7.62 &TL 4.5MM
Description
General part information
2385012-7
7 Position PCB Terminal Block, Header, Wire-to-Board, 7.62 mm [.3 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 2385012-7 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 5 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 7 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.3 in |
| Positions Per Level | 7 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 600 V |
