35492
ActiveTE Connectivity AMP Connectors

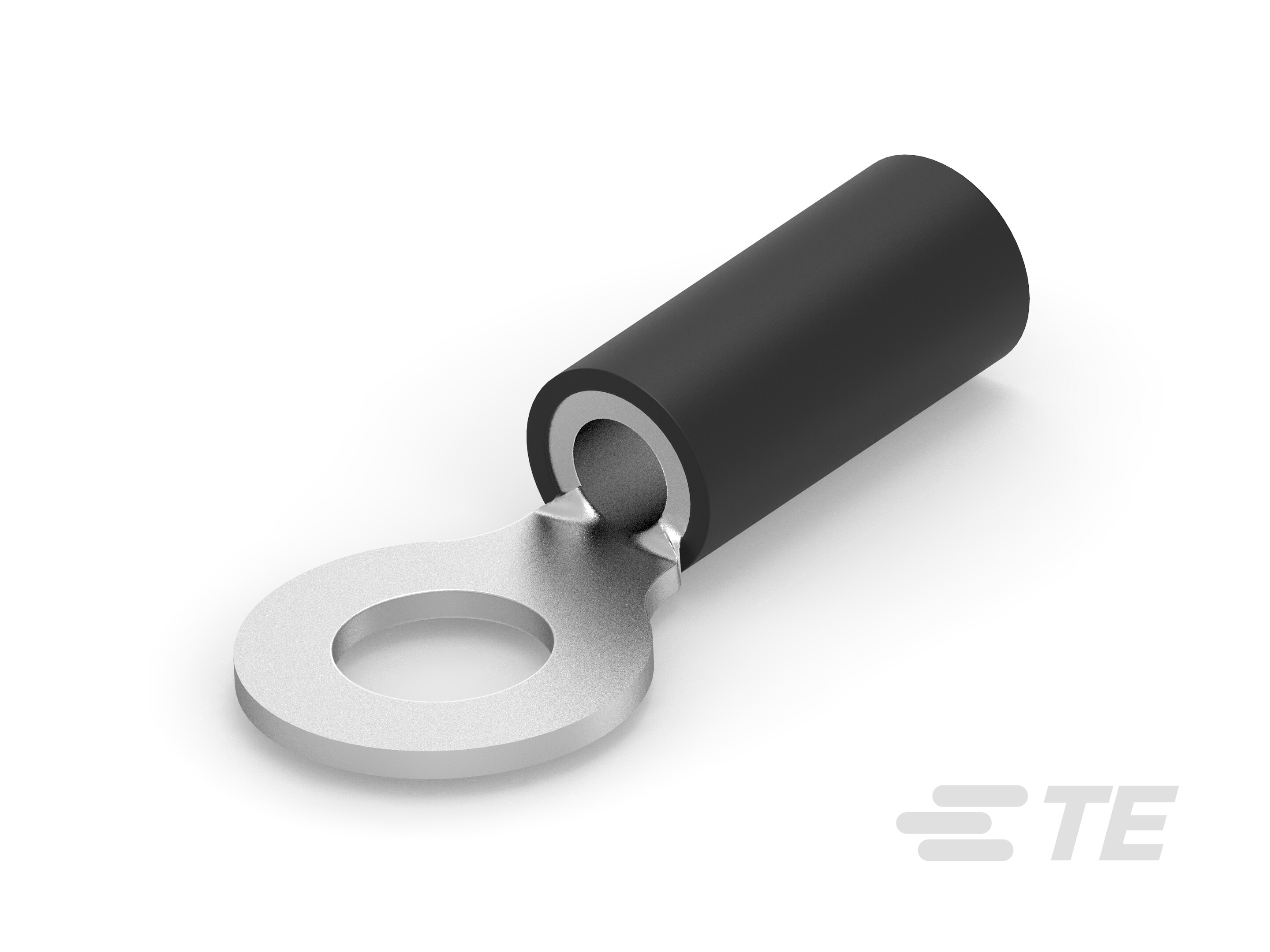

RING TONGUE TERMINAL, M6, 1/4", 10 AWG, 6 MM², PLASTI-GRIP SERIES, BLACK
35492
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, M6, 1/4", 10 AWG, 6 MM², PLASTI-GRIP SERIES, BLACK
Description
General part information
35492
The 35492 is a Ring Tongue Terminal made of copper with tin plated finish. This straight closed barrel terminal features a black vinyl insulator, crimp termination and accepts 12 to 10AWG wire.
Technical Specifications
Parameters and characteristics for this part
| Specification | 35492 |
|---|---|
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 1.247 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.5 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
