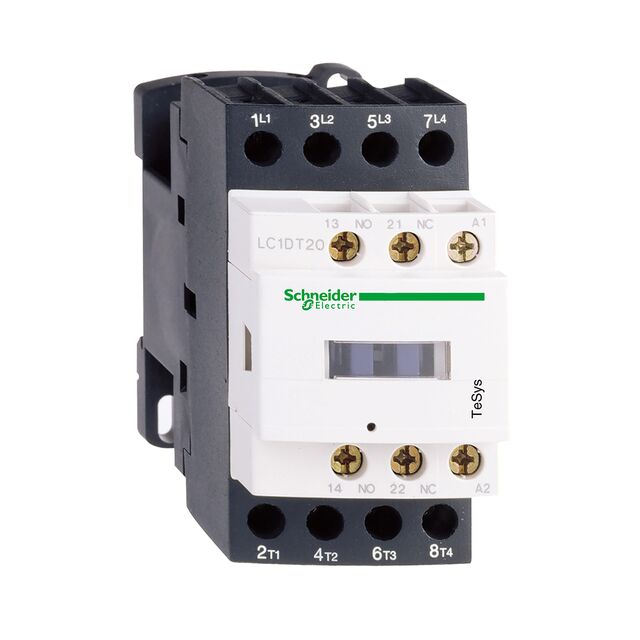

LC1DT20EL
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 20AMP IEC OPTIONS ROHS COMPLIANT: YES
LC1DT20EL
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 20AMP IEC OPTIONS ROHS COMPLIANT: YES
Description
General part information
LC1DT20EL
CONTACTOR 600VAC 20AMP IEC OPTIONS ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DT20EL |
|---|---|
| Coil Voltage | 48 V |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 20 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 38.4 V |
| Must Release Voltage | 4.8 VAC |
| Operate Time | 88.55 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 30 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
