XS1M08PC410D
ActiveSCHNEIDER ELECTRIC
INDUCTIVE SENSOR XS1 M8, L61MM,
XS1M08PC410D
ActiveSCHNEIDER ELECTRIC
INDUCTIVE SENSOR XS1 M8, L61MM,
Description
General part information
XS1M08PC410D

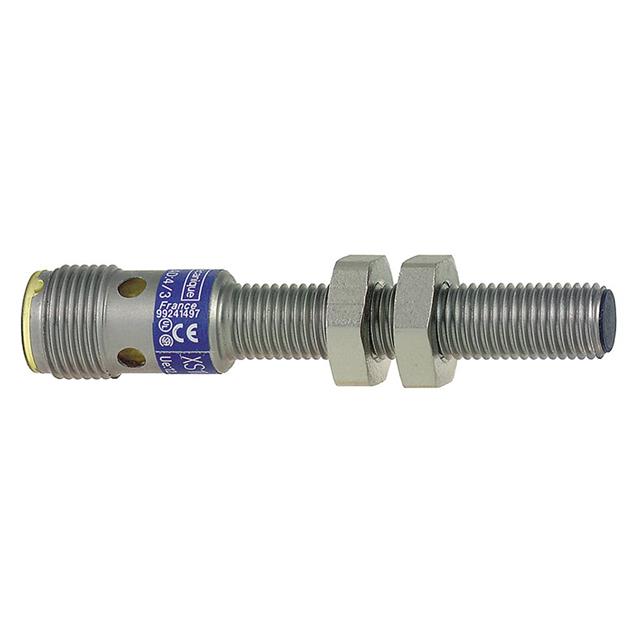

Inductive Proximity Sensor 0.059" (1.5mm) IP67 Cylinder, Threaded - M8
Technical Specifications
Parameters and characteristics for this part
| Specification | XS1M08PC410D |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NC, NO, 4-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 0.059 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
