284065-7
ActiveTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCKS HEADER 7P DL 5.08MM
284065-7
ActiveTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCKS HEADER 7P DL 5.08MM
Description
General part information
284065-7

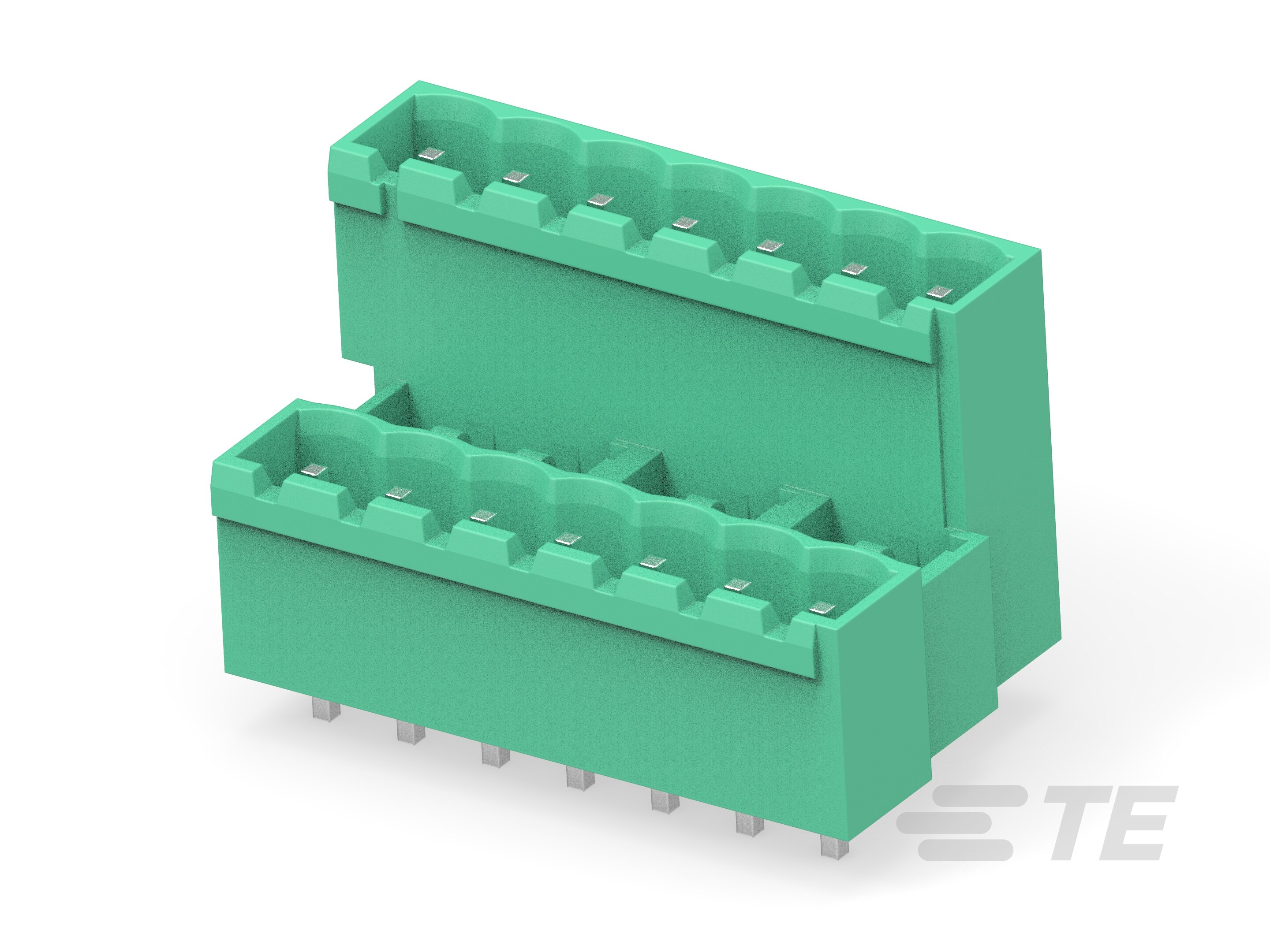

7 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 2 Row, 30 – 12 AWG, .05 – 3 mm² Wire, 300 VAC, Printed Circuit Board
Technical Specifications
Parameters and characteristics for this part
| Specification | 284065-7 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 12 A |
| Features | Interlocking (Side) |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 14 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Positions Per Level | 7 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
