Specification	UVK2W330MHD1TN

Applications	General Purpose
Capacitance	33 µF
Height - Seated (Max)	1.063 in
Lead Spacing	0.295 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	288 mA, 180 mA
Size / Dimension Diameter	0.63 in
Tolerance	20 %
Voltage - Rated	450 V

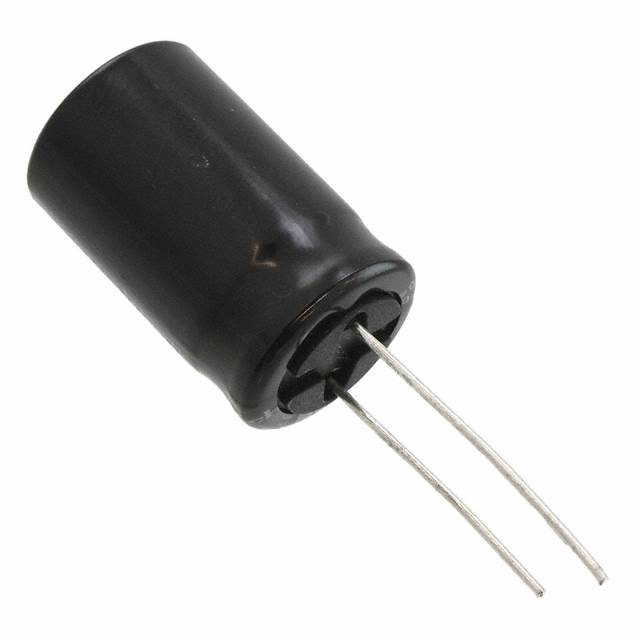

UVK Series

Part	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Capacitance	Ripple Current	Lifetime	Height - Seated (Max)	Package / Case	Lead Spacing	Voltage - Rated	Tolerance	Polarization	Size / Dimension Diameter
Nichicon UVK2G680MHD	Through Hole	-40 °C	85 °C	General Purpose	68 µF	340 mA 544 mA	2000 Hrs	1.319 in	Can Radial	0.295 in	400 V	20 %	Polar	0.63 in
Nichicon UVK2G220MHD	Through Hole	-40 °C	85 °C	General Purpose	22 µF	200 mA 320 mA	2000 Hrs	1.063 in	Can Radial	0.197 in	400 V	20 %	Polar	0.492 in
Nichicon UVK2V470MHD	Through Hole	-40 °C	85 °C	General Purpose	47 µF	300 mA 480 mA	2000 Hrs	1.063 in	Can Radial	0.295 in	350 V	20 %	Polar	0.63 in
Nichicon UVK2E470MHD	Through Hole	-40 °C	85 °C	General Purpose	47 µF	270 mA 432 mA	2000 Hrs	0.866 in	Can Radial	0.197 in	250 V	20 %	Polar	0.492 in
Nichicon UVK1V221MPD1TD	Through Hole	-40 °C	85 °C	General Purpose	220 µF	350 mA 525 mA	2000 Hrs	0.512 in	Can Radial	0.138 in	35 V	20 %	Polar	0.315 in
Nichicon UVK1A332MHD1TO	Through Hole	-40 °C	85 °C	General Purpose	3300 µF	1.45 A 1.6675 A	2000 Hrs	0.866 in	Can Radial	0.197 in	10 V	20 %	Polar	0.492 in
Nichicon UVK1A682MHD	Through Hole	-40 °C	85 °C	General Purpose	6800 µF	2.25 A 2.5875 A	2000 Hrs	1.063 in	Can Radial	0.295 in	10 V	20 %	Polar	0.63 in
Nichicon UVK2A100MDD	Through Hole	-40 °C	85 °C	General Purpose	10 µF	70 mA 140 mA	2000 Hrs	0.492 in	Can Radial	0.079 in	100 VAC/DC	20 %	Polar	0.197 in
Nichicon UVK1C471MPD1TA	Through Hole	-40 °C	85 °C	General Purpose	470 µF	440 mA 660 mA	2000 Hrs	0.512 in	Can Radial	0.138 in	16 V	20 %	Polar	0.315 in
Nichicon UVK2G2R2MPD1TA	Through Hole	-40 °C	85 °C	General Purpose	2.2 µF	38 mA 60.8 mA	2000 Hrs	0.512 in	Can Radial	0.138 in	400 V	20 %	Polar	0.315 in
