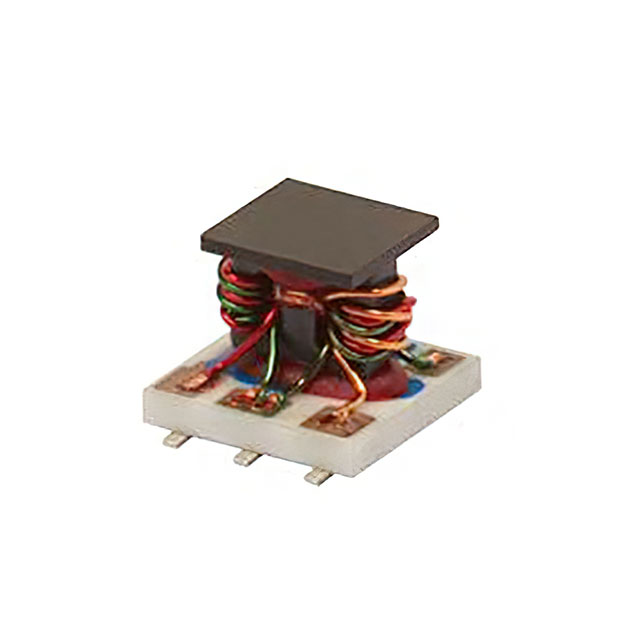

SBTC-2-10-75LX+
ActiveMini-Circuits
RF PWR DVDR 10MHZ-1GHZ 6SMD
SBTC-2-10-75LX+
ActiveMini-Circuits
RF PWR DVDR 10MHZ-1GHZ 6SMD
Description
General part information
SBTC-2-10-75LX+
RF Power Divider 10 MHz ~ 1 GHz Isolation (Min) 20dB, 5° Imbalance (Max) 6-SMD (5 Leads), Flat Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SBTC-2-10-75LX+ |
|---|---|
| Frequency Range 1 (Max) | 1 GHz |
| Frequency Range 1 (Min) | 10 MHz |
| Imbalance (Max) | 5 ° |
| Insertion Loss | 0.7 dB |
| Isolation (Min) | 20 dB |
| Package Leads | 5 Leads |
| Package Name | 6-SMD |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.155 in |
