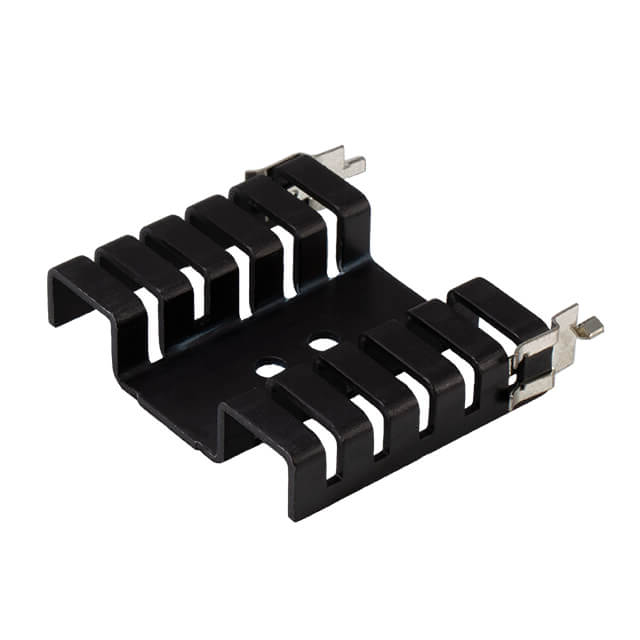

HSS04-B20-P318
ActiveSame Sky (Formerly CUI Devices)
HEATSINK: EXTRUDED; U; TO220; BLACK; L: 41.91MM; W: 44.45MM; H: 9.65MM
HSS04-B20-P318
ActiveSame Sky (Formerly CUI Devices)
HEATSINK: EXTRUDED; U; TO220; BLACK; L: 41.91MM; W: 44.45MM; H: 9.65MM
Description
General part information
HSS04-B20-P318
Heat Sink TO-220 Aluminum Alloy 5.9W @ 75°C Board Level, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | HSS04-B20-P318 |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 0.38 in |
| Length | 1.65 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation | 5.9 W |
| Shape | Rectangular |
| Thermal Resistance | 5.5 °C/W, 12.79 °C/W |
| Type | Vertical, Board Level |
| Width | 1.75 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
